Fiat G.91

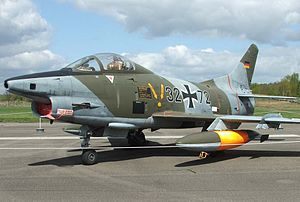

Picture - A Fiat G.91 at the Luftwaffe Museum in Gatow

Role: Fighter-bomber
Manufacturer: Fiat Aviazione Aeritalia
Designed by: Giuseppe Gabrielli
First flight: 9 August 1956
Introduced: 1958
Retired: 1995
Status: Several in museums
Primary users: Italian Air Force Luftwaffe Portuguese Air Force
Number built: 770

The Fiat G.91 was an Italian jet fighter aircraft. It was the winner of the NATO competition in 1953 as standard equipment for Allied air forces. It entered in operational service with the Italian Air Force in 1961, with West Germany's Luftwaffe, in 1962, and later with the Portuguese Air Force. It was in production for 19 years. 756 aircraft were completed, including the prototypes and pre-production models. The assembly lines were finally closed in 1977. The Fiat G.91 enjoyed a long service life that extended over 35 years. It was widely used by Portugal in the Portuguese Colonial War in Africa. A twin-engined variant was known as the Fiat/Aeritalia G.91Y.

Design and development

In December 1953, NATO Supreme Command, issued specifications for a new light tactical support aircraft. European manufacturers were invited to submit their designs for this requested Light Weight Strike Fighter (LWSF) role. The G.91 was designed to this specification by the Italian engineer Giuseppe Gabrielli, hence the "G" designation. The competition was intended to produce an aircraft that was light, small, expendable, equipped with basic weapons and avionics and capable of operating with minimal ground support. These specifications were developed for two reasons: the first was the nuclear threat to large air bases, many cheaper aircraft could be better dispersed, and the other was to counter the trend towards larger and more expensive aircraft.

The technical requirements were:

1,100 m (3,610 ft) takeoff distance over a 15 m (49 ft) obstacle
Capability to operate from grass strips and streets
Maximum speed of Mach 0.95
Range of 280 km (170 mi) with 10 minutes over the target
Armoured protection for the pilot and the fuel tanks
4 x— 12.7 mm (.5 in) or 2 x— 20 mm or 30 mm guns
A maximum of 2,200 kg (4,850 lb) empty weight and 4,700 kg (10,360 lb) max weight

The challenge of providing an engine that matched the requirements of lightness and power, reliability and ease of maintenance was solved by using the Bristol Siddeley Orpheus turbojet.

The designs were required within two months of the competition. The special committee had to choose from eight projects. Besides the G.91, these included the Northrop N-156, Dassault Mystx¨re XXVI (future Dassault x‰tendard IV), Sud-Est Baroudeur, Aerfer Sagittario II and the Breguet Taon Br.1001. These designs were assessed starting on 18 March 1953 by AGARD (Advisory Group for Aeronautical Research and Development) under the leadership of Von Karman.

Picture - A preserved example of the G.91 in Frecce Tricolori's colors

Project selections took 18 months to complete. The first result was announced on 30 June 1955: the winning projects were, in order: the Breguet Br. 1001 Taon and the Fiat G.91. A third was added to these two aircraft: the Mystx¨re XXVI, and three prototypes of this design were also ordered. The G.91 first flew on 9 August 1956 at the Caselle airfield, Turin, in the hands of Chief Test Pilot Riccardo Bignamini, with a seven-month lead over the Dassault prototype and almost a year ahead of the Breguet Taon.

The intensive series of tests that followed the maiden flight was not without its setbacks. The most serious problem was the elimination of aeroelastic vibrations which, on 20 February 1957, led to the destruction of the first G.91 prototype. The re-engineering work to cure the problem was very extensive and resulted in the second prototype being fitted with a larger tail, a 6 cm (2 in) higher canopy, a ventral fin and some other modifications. This aircraft flew in July 1957, but it was not sent to the final evaluation. The third and fourth G.91 prototypes were sent to France, for the competition.

The final selection of the competing designs was planned for late 1957. In September 1957, at the Centre d'Essais en Vol at Bretigny-sur-Orge, in France, the three rival aircraft types met for evaluation trials. During the trials the Italian aircraft performed impressively and, in January 1958, the Fiat G.91 was officially declared the winner.

Following a meeting of NATO Defence Ministers in April 1958 it was agreed that the G91 would be the first NATO lightweight strike fighter, it would be followed in 1961 by the Breguet Taon. A production meeting was planned for May 1958 to discuss the production of the aircraft with financial support from the United States, the Americans would provide some of the finance for the French, German and Italian aircraft and pay for the Turkish aircraft. The defence ministers reached agreement to order 50 aircraft for each country.

Given the large economic and commercial interests at stake, there was a certain amount of controversy surrounding this decision. After the loss of the G.91 prototype, the French government preferred to pursue development of the locally-designed x‰tendard. The British government similarly ignored the competition to concentrate on Hawker Hunter production for the same role. In fairness, it should also be pointed out that the Italian government also ordered the G.91 for the Italian Air Force before the results of the competition were known. These pre-production machines would later go on to serve for many years with the Italian aerobatic team, the Frecce Tricolori as the G.91 PAN. The type was also considered by Austria, Norway, Switzerland, and even the United States Army, which briefly evaluated the type as a possible Forward Air Control (FAC) aircraft before relinquishing all fixed-wing aircraft operations to the USAF.

Production

Picture - Cockpit of a G-91 R1 in Malignani school (Udine).

Aeritalia built 174 G.91s for Italy, plus 144 R/3 variants for West Germany (including 50 that had been ordered and then cancelled by Greece and Turkey). The German order involved a production run of 294 G.91s built in Germany by Flugzeug-Union Sx¼d (a consortium of former competitors Messerschmitt, Heinkel and Dornier). These were the first combat aircraft built in Germany since World War II. The first order was for 50 machines from Aeritalia, then Dornier and other German firms had an order for 232 machines, later increased to 294. The Luftwaffe also bought 44 G-91T/3 two-seat trainers and another 22 were produced in Germany, ending production in 1972.

The Luftwaffe had intended to equip a further four wings with the G.91R/3 but initial operating experience with the type left the Luftwaffe disappointed with the aircraft's performance and further orders were cut. Some Luftwaffe G.91s were emblazoned with "pig" emblems as a comment on the aircraft's lacklustre performance.

Operational history

Italian service

Picture - G-91 R1 in Malignani school (UDINE)

The first G.91s entered service with the Italian Air Force in August 1958, with 103mo Gruppo, 5a Aerobrigata, called "Caccia Tattici Leggeri (CTL)", based at Pratica di Mare Air Force Base, the same with Reparto Sperimentale di Volo. The next operational unit was 14mo Gruppo, Seconda Aerobrigata in 1961. This unit had its role shifted to tactical support, because its groups were 14mo, 103mo (dispatched from 5 A/B to this Aerobrigade) and 13mo (only in reserve). All of them were based at Treviso-Sant'Angelo.

The last G.91 was phased out and retired by Italy in 1995.

German service

Forty-five G.91 T/3 Fiat built two-seat trainer aircraft were ordered for the Luftwaffe, the first 35 being allocated to Waffenschule 50 (Weapon School 50) with the balance of the order divided between operational units. 22 aircraft were built by Dornier between 1971 and 1973, these aircraft were used to train Weapons Systems Officers for the F-4 Phantom.

Five Fiat built G.91R/3 aircraft were delivered to Erprobungstelle 61 for trials with subsequent deliveries being allocated to Aufklarungsgeschwader 53 based at Erding, near Munich along with Waffenschule 50. The first Dornier-built example of this variant was flight tested on 20 July 1961. The G.91R/3 equipped four newly formed Leichten Kampfgeschwadern (light attack wings), often replacing former F-84 Thunderstreak units.

Fifty G.91 R/4 aircraft were taken up from a cancelled Greek/Turkish order but being unsuitable for operational use were used as training aircraft and were operated solely by Waffenschule 50. When the initial training programme was completed the R4 was retired in 1966, 40 surviving airframes were sold to Portugal. Other R/4 aircraft remained in Germany and were transferred to ground instructional use or displayed at recruitment presentations.

On 1 January 1970 the Luftwaffe fleet consisted of 310 G.91 R/3 and 40 G.91T aircraft, and by 1976 only 20 of the R/3s had been lost to accidents, a loss rate of 6%. The G.91 R/3 was to be replaced in the early 1980s by the Dassault/Dornier Alpha Jet which operated in the same role, with the last G.91s being retired in 1982.

Portuguese service

From 1961, Portugal became involved in fighting against nationalist movements in its African overseas territories, the series of conflicts becoming known as the Portuguese Colonial War. Portugal had deployed a detachment of F-86 Sabres to Portuguese Guinea in August 1961, prior to the outbreak of major fighting, but was forced to withdraw the jet fighters back to Europe owing to pressure from the United States and the United Nations, who imposed an arms embargo. This left a gap in air cover for Portugal's African colonies, both in the close air support role, and in the air defence role.

In 1965, as the scale of fighting increased, Portugal attempted to purchase 100 surplus Canadian built Sabre Mk 6s from West Germany, but instead, it was offered 40 G.91R/4s, which had originally been built for Greece and Turkey and which differed from the rest of the Luftwaffe G.91s sufficiently to create maintenance problems in exchange for allowing Germany to build and use an airbase at Beja in Portugal for training.

G.91s arrived in Portuguese Guinea in 1966, equipping Esquadra 121 Tigres based at Bissau, and being used for reconnaissance and close support with rockets, napalm and bombs against PAIGC rebels. When the PAIGC started to be supplied with Soviet-made Strela 2 (NATO designation SA-7 Grail) MANPADS in early 1973, these immediately became a threat to Portuguese air superiority. On 25 March 1973, and 28 March, two FAP G.91s were shot down by missiles within three days, with a further two lost to conventional ground fire later in the year. (By comparison, only two G.91s had been lost in Guinea from 1966 to 1973.) A final G.91 was lost to a missile on 31 January 1974, while Strelas were also responsible for the loss of a T-6 Texan and two Do.27K-2s.

Picture - Portuguese Air Force G-91 preserved at Sintra Air Base

G.91s deployed to Mozambique at the end of 1968, equipping Esquadra 502 Jaguares ininitally at Beira, later moving to Nacala, with a second squadron Esquadra 702 Escorpixµes (Scorpions) forming in September 1970 at Tete, flying against FRELIMO forces. Fremilo also received Strelas in 1973, although unlike elsewhere, the Portuguese in Mozambique did not lose any aircraft to missiles with Chinese support, even if it forced Portuguese pilots to change their tactics. The only G.91 destroyed in combat in Mozambique was the serial number 5429, flown by Lt. Emilio Lourenco: his plane was destroyed and Lourenco killed by a premature detonation of its bombs while flying a strike against rebel positions on 15 March 1973.

In 1973, with the United Nations weapons embargo against Portugal, the Air Force faced problems purchasing further numbers of close air support aircraft. An attempt was then made to acquire more Fiat G.91s from Germany by having Dornier disassembling the aircraft and then selling them as spare parts to Switzerland and Spain. These spare parts would be later sold to Portugal and assembled locally with different serial numbers. However, the deal did not follow through as the German government vetoed it.

In April 1974, the Portuguese government fell in the Carnation Revolution, with the new government seeking to grant its colonies independence. Portugal withdrew its G.91s from Guinea when it was granted independence in 1974, with its forces also leaving Mozambique. One of the G.91 squadrons was briefly deployed to Angola in late 1974, in order to try and prevent fighting between rival FNLA and UNITA forces, being finally withdrawn back to Portugal in January 1975.

In 1976, a second purchase of 14 G.91 R/3s and 7 G.91 T/3 trainers was made from Germany, which were followed by further aircraft when the G.91 was withdrawn from Luftwaffe service in from 1980 to 1982, giving a total of 70 R/3s and 26 T/3s, although not all of these entered service, with many being broken up for spare parts. Portugal finally phased out the last of its G.91s in 1993.

Variants

Picture - An Italian trainer Fiat G.91T of the 60° Stormo (60th Wing) is parked on the flight line while transiting Bitburg Air Base in 1988.

Trainer and reconnaissance variants were produced right from the start of G.91 production, but the basic design of the aircraft remained virtually unchanged throughout almost the entire production run of the aircraft. The one major difference is that the R series aircraft were single-seaters, while the T series aircraft had two seats. To accommodate the extra seat, the T series aircraft had a slightly longer fuselage.

G.91 - Prototypes and pre-production aircraft.
G.91R/1 - Light attack/reconnaissance aircraft, fitted with modified nose housing three cameras.
G.91R/1A - Revised instrumentation.
G.91R/1B - Strengthened airframe.
G.91R/3 - Single-seat ground-attack, reconnaissance version for the Luftwaffe. Powered by a Rolls-Royce Orpheus turbojet engine. Armed with two 30 mm DEFA cannons.
G.91R/4 - Similar to the G.91R/3, but armed with four 12.7 mm (0.5 in) Colt-Browning machine guns. Powered by a Rolls-Royce Orpheus turbojet engine.
G.91T/1 - Trainer version of G.91R/1 for Italian Air Force.
G.91T/3 - Trainer version for Luftwaffe.
G.91PAN - Aerobatic display aircraft for Frecce Tricolori, converted from pre-production G.91s.

G.91Y

An additional 67 aircraft built by Aeritalia were significantly uprated from earlier versions. These single-seat aircraft, designated G.91Y and nicknamed "Yankee", replaced the original Bristol Siddeley Orpheus engine with two General Electric J85 units. The G.91Y first flew on 12 December 1966 and displayed an improvement in speed, range, payload, and manoeuvrability. The maximum speed was increased to 1,110 km/h (690 mph, 600 kn, Mach 0.91). The machine guns were replaced by a pair of DEFA 552 30 mm cannon with 125 rounds per gun. All the aircraft built served with the Italian Air Force.

Operators

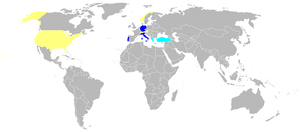

Picture - Operators of the G.91 in dark blue, cancelled orders in light blue, evaluations in yellow.

Germany

Luftwaffe
Aufklx¤rungsgeschwader 53
Aufklx¤rungsgeschwader 54
Erprobungstelle 61
Leichtes Kampfgeschwader 41
Leichtes Kampfgeschwader 42
Leichtes Kampfgeschwader 43
Leichtes Kampfgeschwader 44
Waffenschule 50

Greece

Hellenic Air Force Evaluation operator, four aircraft in service, but retired.

Italy

Italian Air Force
Frecce Tricolori

Portugal

Portuguese Air Force (1966-1993)

United States

United States Army - Evaluated two aircraft (1 G.91R/1, 1 G-91R/3) in 1961.
United States Navy - Also an evaluation operator, about four aircraft served.

Aircraft on display

There are numerous examples preserved in museums around the world.

Specifications (G.91R)

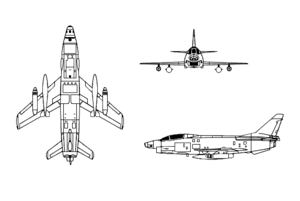

Picture - Orthographically projected diagram of the Aeritalia G-91Y twin-engined variant

General characteristics

Crew: 1
Length: 10.3 m (33 ft 9 in)
Wingspan: 8.56 m (28 ft 1 in)
Height: 4.0 m (13 ft 1 in)
Wing area: 16.4 m² (177 ft²)
Empty weight: 3,100 kg (6,830 lb)
Loaded weight: 5,440 kg (11,990 lb)
Max takeoff weight: 5,500 kg (12,100 lb)
Powerplant: 1 x— Bristol Siddeley Orpheus 803 turbojet, 22.2 kN (5,000 lbf)

Picture - A Matra Type 116M rocket launcher mounted on a Fiat G.91, on display at the Luftwaffenmuseum der Bundeswehr, Berlin.

Performance

Maximum speed: 1,075 km/h (580 kn, 668 mph)
Range: 1,150 km (621 nmi, 715 mi)
Service ceiling: 13,100 m (43,000 ft)
Rate of climb: 30 m/s (6,000 ft/min)
Wing loading: 331 kg/m² (67.8 lb/ft²)
Thrust/weight: 0.42

Armament

Guns: 4x— 12.7 mm (0.50 in) M2 Browning machine guns; or 2x— 30 mm (1.18 in) DEFA cannons (Luftwaffe G.91R/3 only)
Hardpoints : 4x— under-wing pylon stations holding up to maximum of 1,814 kg/4,000 lb of payload for G.91Y, 680 kg/1,500 lb for G.91R/3 & R/4 and 500 kg/1,100 lb for G.91R/1
Rockets: 2x— Matra rocket pods (each with 19x— SNEB 68 mm rockets); or 18x— Hispano SURA R80 80 mm rockets
Bombs: A wide variety of air-to-ground ordnance including unguided iron bombs, gun pods in addition to auxiliary drop tanks for extended range

Comparable aircraft

Dassault x‰tendard IV
F-5 Freedom Fighter
Folland Gnat
Lim-6
North American F-86D Sabre

Bibliography

Angelucci, Enzo and Paolo Matricardi. Combat Aircraft 1945-1960. Maidenhead, Berkshire, UK: Sampson Low Guides, 1980. ISBN 0-562-00136-0.
Crosby, Francis. "Fiat/Aeritalia G91." Fighter Aircraft. London: Lorenz Books, 2002. ISBN 0-7548-0990-0.
Doll, Peter and Herman Dorner. The New Luftwaffe in Action (In Action No.1013). Carrollton, Texas: Squadron/Signal Publications, 1974.
Ferrari, Massimo. "Addio G.91R" (in Italian). RID magazine, August 1992.
Green, William. The World's Fighting Planes. London: Macdonald, 1964.
Harding, Stephen (1997). U.S. Army Aircraft Since 1947. Atglen, PA, USA: Schiffer Publishing Ltd.. ISBN 96-69996.
Jackson, Paul A. German Military Aviation 1956-1976. Hinckley, Leicestershire, UK: Midland Counties Publications, 1976.ISBN 0-904597-03-2
Lopes, Mario Canongia. "Portugal's Ginas". Air Enthusiast, Thirty-six, May-August 1988, pp. 61-72. ISSN 0143-5450.
Niccoli, Riccado. "Fiat G.91, NATO's Lightweight Fighter." International Air Power Review. Volume 7, Winter 2002.
Taylor, John W. R. "Fiat G.91". Combat Aircraft of the World from 1909 to the Present. New York: G.P. Putnam's Sons, 1969. ISBN 0-425-03633-2.
