Curtiss CS

Curtiss CS Aircraft Information

Curtiss CS

CS / SC

Curtiss CS

Role: Reconnaissance and torpedo bomber aircraft
Manufacturer: Curtiss Aeroplane Company, Martin
First flight: 1923
Primary user: United States Navy
Number built: 83

The Curtiss CS (or Model 31) was a reconnaissance and torpedo bomber aircraft used by the United States Navy during the 1920s. It was a large, single engine biplane with single-bay, unstaggered wings, the design conventional in all respects other than the fact that the lower wing was of greater span than the upper. The CS was built to allow its undercarriage to be quickly and easily swapped between wheeled, tailskid undercarriage, and twin pontoons for operation from water. Provision for the carriage of a torpedo was semi-recessed into the underside of the fuselage, blended in behind an aerodynamic fairing. The pilot and gunner sat in tandem open cockpits, while accommodation inside the fuselage was provided for a third crewmember who served as bombardier and radio operator. This station was also provided with a hatch in the dorsal side of the fuselage aft of the gunner's position, and a blister on the ventral side aft of the torpedo recess, which was used for aiming bombs or torpedoes.

Development

Curtiss produced six CS-1 prototypes for the Navy in 1923, which were mostly used for engine tests. Two examples of the improved CS-2 were built the following year and set a number of world speed, distance, and endurance records for seaplanes in its class. The Navy ordered both the CS-1 and CS-2 into production, but when Curtiss tendered with a price of $32,000 per aircraft, Martin undercut them with a tender of $25,200 for each CS-1 and $19,863 for each CS-2 and won the contract. Curtiss refused to provide full sets of drawings and data to Martin, so Martin-built machines were in part reverse-engineered from a Curtiss-built CS-1 provided by the Navy. By the time the Martin-produced aircraft were delivered in 1925-26, the Navy's designation system had changed, and they entered service as the SC-1 and SC-2. Martin-built SC-2s suffered from poor handling characteristics and soon earned the nickname "Sea Cow". Meanwhile, the Naval Aircraft Factory made extensive modifications to the two Curtiss CS-2s leading them to be redesignated CS-3. Further development of the design was carried out by Martin as the T3M and T4M, and eventually by Great Lakes as the TG.

Operational history

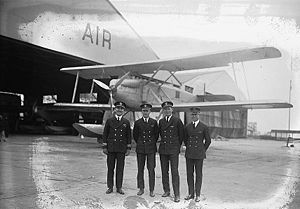

In 1924, the CS-2 was used to break numerous world records for seaplanes in its class in three long-range flights. The first of these took place overnight between 22 and 23 June, when Lt Frank Wead and Lt John Price set five records - distance (963.123 mi, 1,544.753 km), duration (13 hr, 23 min, 15 sec), speed over 500 km (73.41 mph/117.74 km/h), speed over 1,000 km (74.27mph/119.12 km/h) and speed over 1,500 km (74.17 mph/118.96 km/h). Between 11 and 12 July, the same pilots would break the distance and duration records again (994.19 mi/1,594.58 km over 14 hr, 53 min, 44 sec). On October 10, these same two records would be exceeded by Lt Andrew Crinkley and Lt Rossmore Lyon in a flight of 1,460 mi (2,342 km) in 20 hours 28 minutes. While these would have been new world records, the flight was not officially timed, and was therefore not recognized as such.

On September 23, 1925, the U.S. Navy flew 23 Curtiss CS-1 floatplanes to Bay Shore Park on the Chesapeake Bay, 14 miles SE of Baltimore, Maryland, on a Friday with intention of an air show demonstration before the 1925 Schneider Cup Race on Saturday, but that night gale force winds broke three-inch mooring and anchor ropes on 17 of the biplanes and they were blown onto shore or dashed against seawalls, destroying 7 and damaging 10. The next afternoon's Baltimore Evening Sun had the headline "Plane Disaster in Harbor Called Hard Blow to Navy" and quoted General William "Billy" Mitchell, who called the loss of the CS-1s "staggering" and blamed it on Navy mismanagement of its aviation program.

Variants

Curtiss CS-1
Initial prototypes/production, powered by 530 hp (395 kW) Wright T-2 engine. Six built by Curtiss.
Curtiss CS-2
Improved version with 600 hp (448 kW) Wright T-3 engine and more fuel. One converted from CS-1 and two new built aircraft by Curtiss.
Curtiss CS-3
Modified CS-2, with geared engine. One converted. Formed basis of Martin T3M.
Martin SC-1
Martin built production version of CS-1. 35 built.
Martin SC-2
Martin built production version of CS-2. 40 built.
Martin T2M
Alternative designation for the Martin built SC series.
Martin XSC-6
Conversion of SC-1 with 730 hp (545 kW) Packard 1A-2500 engine.
Martin SC-6
SC-1 fitted with 1A-2500 engine.
XSC-7
Conversion of CS-1 with T-3A engine and increased gross weight.

Operators

United States

United States Navy

Specifications (SC-2 landplane)

Data from United States Navy Aircraft since 1911

General characteristics

Crew: 3
Length: 37 ft 9 in (11.51 m)
Wingspan: 56 ft 7 in (17.25 m)
Height: 14 ft 8 in (4.47 m)
Wing area: 856 sq ft (79.5 m)
Empty weight: 5,007 lb (2,271 kg)
Gross weight: 8,422 lb (3,820 kg)
Powerplant: 1 x— Wright T-3 water-cooled V12 engine, 585 hp (436 kW)

Performance

Maximum speed: 103 mph (166 km/h; 90 kn) at sea level
Range: 1,018 mi (885 nmi; 1,638 km)
Service ceiling: 8,000 ft (2,438 m)
Time to altitude: 10 minutes to 2,000 ft (610 m)

Armament

Guns: 1 x— rearward-firing machine gun in ring mount
Bombs: 1 x— 1,618 lb (734 kg) torpedo

Bowers, Peter M. (1979). Curtiss Aircraft 1907-1947. London: Putnam. ISBN 0 370 10029 8.
Swanborough, Gordon; Bowers, Peter M. (1976). United States Navy Aircraft since 1911 (Second ed.). London: Putnam. ISBN 0 370 10054 9.
Taylor, Michael J. H. (1989). Jane’s Encyclopedia of Aviation. London: Studio Editions. p. 278.
World Aircraft Information Files. London: Bright Star Publishing. p. File 901 Sheet 07.
