FiatAS.1, AS.2, and TR.1

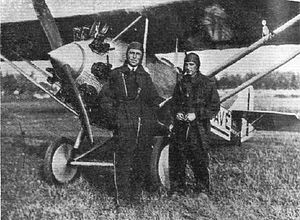

Picture - Fiat AS.1 of Lombardi and Capannini

Role: Touring aircraft
Manufacturer: Fiat
First flight: 1928
Number built: ca. 550

The Fiat AS.1 was a light touring aircraft developed in Italy in the late 1920s. It was a basic and conventional design: a parasol wing monoplane with tailskid undercarriage and seating for two in tandem open cockpits. The type proved extremely popular, and the production run would eventually extend to over 500 machines, with roughly half of these purchased by the Regia Aeronautica as trainers and liaison aircraft. Construction was of wood throughout, covered by plywood, fabric, and (around the nose) metal. A later development, designated TR.1 featured a metal structure instead.

AS.1s were used successfully in a number of competitions and record-breaking events. In August 1929, they participated in the Challenge 1929 international contest, and in January 1930, an AS.1 piloted by Renato Donati with mechanic Gino Capannini was used to set endurance, distance, and altitude records in its class (29 hr 4 min 14 sec, 2,746.2 km/1,706.4 mi, and 6,782 m/22,251 ft respectively). On 28 December 1932, Furio Niclot and Mariano Lanciani used a specially-engined example to set the seaplane altitude record in its class (7,362 m/24,154 ft), then swapping wheels for pontoons, the same aircraft went on to set the equivalent landplane record two days later (9,282 m/30,453 ft). Long-distance feats included flights from Rome to Mogadishu and Vercelli to Tokyo (both by Francis Lombardi and Gino Capannini) and an aerial circumnavigation of Africa (27,600 km/17,150 mi in 54 days by Francis Lombardi, Count Lodovico Mazzotti, and Mario Rasini).

Variants

AS.1 - initial version with Fiat A.50 engine
AS.1 Idro - floatplane version
AS.1 Sci - ski-equipped version
AS.2 - version with strengthened structure and Fiat A.50S engine
TR.1 - version with metal structure and enclosed cabin

Specifications (AS.1)

General characteristics

Crew: 1, pilot
Capacity: 1 passenger
Length: 6.10 m (20 ft 0 in)
Wingspan: 10.40 m (34 ft 2 in)
Height: 2.53 m (8 ft 4 in)
Wing area: 17.5 m² (188 ft²)
Empty weight: 450 kg (990 lb)
Gross weight: 690 kg (1,520 lb)
Powerplant: 1 x— Fiat A.50, 67 kW (90 hp)

Performance

Maximum speed: 158 km/h (98 mph)
Range: 1,000 km (621 miles)
Service ceiling: 6,800 m (22,310 ft)

"General Aviation World Records". FAI website. http://records.fai.org/general_aviation/aircraft.asp?id=2584. Retrieved 2008-12-03.
The Illustrated Encyclopedia of Aircraft. London: Aerospace Publishing.
Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions. pp. 383.
"Italy-Japan". Flight: 896. 8 August 1930. http://www.flightglobal.com/PDFArchive/View/1930/Untitled0%20-%200944.html. Retrieved 2008-03-17.
"Round Africa by Light Plane". Flight: 137. 13 February 1931. http://www.flightglobal.com/PDFArchive/View/1931/1931%20-%200141.html. Retrieved 2008-03-17.
World Aircraft Information Files. London: Bright Star Publishing. pp. File 894 Sheet 18.
