Fiat CR.32

Role: Fighter
Manufacturer: Fiat
Designed by: Celestino Rosatelli
Retired: 1957 Spanish Air Force
Primary users: Regia Aeronautica Hungarian Air Force Spanish Air Force
Variants: Fiat CR.42

The Fiat CR.32 was an Italian biplane fighter used in the Spanish Civil War and World War II. This nimble little Fiat was compact, robust and highly manoeuvrable and gave impressive displays all over Europe in the hands of the Pattuglie Acrobatiche. The CR.32 fought in North and East Africa, in Albania and in the Mediterranean theatre. The CR.32 saw service in the air forces of China, Austria, Hungary, Paraguay and Venezuela. Used extensively in Spanish Civil War, it gained a reputation as one of the outstanding fighter biplanes of all time. But then it was overtaken by more advanced monoplane designs and was obsolete by 1939.

Development

The Fiat CR.32 was designed by Celestino Rosatelli. Derived from earlier Fiat CR.30 designs, the CR.32 was a more streamlined and smaller biplane fighter. The prototype MM.201 first flew the 28 April 1933 from the Fiat company airstrip at Turin.

Design

The fuselage had same structure as the CR.30, utilizing aluminium and steel tubes covered by duraluminium on the nose up to the cockpit, on the back, in lower section under the tail, and with fabric on the sides and "belly". The wings and tail also had mixed structure, with aluminium frame covered by fabric. A notable feature was that the lower wing was shorter than the upper wing making it sesquiplane. Ailerons were only on the upper wings. Armament included initially two 7.7 mm (.030 in) Breda-SAFAT machine-guns (later two 12.7 mm (.5 in) Breda-SAFAT), located on top of the engine cowling, with 350 rounds each.

The engine was the water-cooled Fiat A.30 RA. Designed in 1930, it was a 60° V 12, producing 447 kW (600 hp) at 2,600 rpm, inspired by the American Curtiss D-12. It drove a 2.82 meter two-blade metal propeller with variable pitch ("a passo variabile") but only adjustable on the ground, not in flight. The engine did not use the usual avio-petrol but a mixture of petrol (55%), alcohol (23%) and benzole (22%). The main fuel tank, located between the engine and cockpit, carried 325 liters. There was another small tank (25 liters) in the "torpedo" fairing in the center of the upper wing.

Although fully instrumented, the RA.80-1 radio was optional.

Operational history

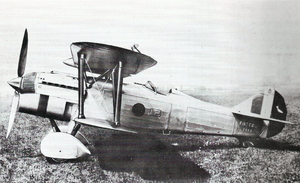

Picture -

The new biplane was an instant success. After a period of testing. The first production orders were received in March 1934, and the type soon equipped the 1°, 3° and 4° Stormi of the Regia Aeronautica. The CR.32 was well liked by its crews, being very maneuverable and having a strong fuselage structure.

The Fiat biplanes were used for many aerobatic shows, in Italy and abroad. When foreign statesmen visited the Holy City, the 4° Stormo, Regia Aeronautica élite unit, based in Rome, put on impressive displays with formations of five or 10 aircraft. In 1936, air shows were organized in other European capitals and major cities, and, during the following year, in South America. When the team returned a brilliant display was put on in Berlin.

Spain

In 1938 Spain acquired a license to build the CR.32. Hispano Aviacix³n built 100 examples under the designation HA-132-L Chirri, some of these remaining in service as C.1 aerobatic trainers up to 1953. The Fiat CR.32 was used extensively in the Spanish Civil War on the side of the military rebellion against the Spanish Republic. At least 380 took part in the air battles fought over Spain, proving formidable adversaries to the Soviet Polikarpov I-15 and Polikarpov I-16 monoplanes that formed the backbone of the Spanish Republican Air Force. It had its baptism of fire in 1936. On 18 August 1936, the first 12 CR.32 Freccias arrived in Spain and formed the Squadriglia "Gamba di Ferro", "Cucaracha" and "Asso di Bastoni" of 3° Stormo. Three days later, Tenente Vittorino Ceccherelli, Medaglia d'Oro al Valor Militare (Golden Medal to Military Valour) shot down the first enemy aircraft, a Nieuport 52, over Cordoba. In total, the Italian government sent 365-405 C.R.32s to Spain while 127-131 were delivered directly to the Nationalist Aviation units. Six aircraft were captured by Republican FARE, with one sent to the USSR for evaluation.

Thanks to the agile CR.32, the Italians managed to obtain air superiority against its Fuerzas Aéreas de la Repxºblica Espax±ola loyalist opponents, that flew a motley collection of very different, often obsolete aircraft. The Fiat biplane proved to be effective with Aviacix³n Legionaria claiming 60 (48 confirmed) modern Russian bombers Tupolev SB, once believed impossible to intercept, 242 Polikarpov I-15 biplane fighters and 240 Polikarpov I-16 monoplane fighters, plus another hundred not confirmed. Fiat C.R.32 losses were only 73. According to other sources, of the 376 Fiat shipped to Spain, 175 (43 Spanish operated and 132 Italian) were lost, including 99 (26 Spanish and 73 Italian) shot down, while, by January 1939, the I-15s shot down were just 88.

Fiat CR.32 Spain aces

The top scoring Fiat CR.32 ace was Spanish Joaqux­n Garcx­a Morato y Castax±o. He was the leading Nationalist fighter pilot of the Spanish Civil War. He achieved 36 of his 40 victories flying the Fiat biplane. He used, until his death, the same aircraft, which carried the number 3-51 on the fuselage. On April 1939, the war over, while performing low aerobatics on his faithful 3-51, Morato crashed to his death.

Another Nationalist CR.32 ace was Capitx¡n Manuel Vasquez Sagaztizabal, who claimed 21 1/3 victories with Grupo 2-G-3, before he was shot down and killed on 23 January 1939. Comandante Angel Salas Larrazabal, after one kill flying a Nieuport-Delage 52, flew CR.32s, shooting down, on 29 October 1936, the first of the fast Soviet monoplane Tupolev SB-2 bombers to fall to Nationalist fighters. He shot down four more aircraft with the CR.32 before moving to a Heinkel He 51 unit. But after two more victories, he joined the new Grupo 2-G-3. With this unit, flying CR.32 again, he raised his score to 16, including three SB-2s and a I-16 in a single sortie on 2 September 1938. Capitx¡n Miguel Guerrero Garcia achieved nine of his 13 victories flying the Fiat biplane: four I-15s, three “Papagayosâ€� (R-5s and Polikarpov-RZs assault bombers) and two I-16s.

World War II

The aerobatic characteristics of the CR.32 and its success in Spain misled the Italian air ministry, which formed the view that a fighter biplane still had potential as a weapon of war. Consequently, in May 1939, prior to Italy entering World War II, the CR.32 fighters in bis, ter and quater versions, represented two thirds of all fighters in the Regia Aeronautica. A total of 294 were based in Italy and North Africa, while 34 were stationed in East Africa. When Italy declared war on 10 June 1940, the CRs soldiered on into World War II. About 40 "Freccias" in Libya were the first to see action, flying escort missions over Tripoli. The first combat with British aircraft came the following day; six CR.32s intercepted a formation of Bristol Blenheim bombers, shooting down two and damaging the other four, for no losses.

The greatest wartime successes achieved by CR.32 were in Italian East Africa. Here, 410a and 411a Squadriglia CR.32s (that represented half of all the fighters operative in the Italian colony) destroyed a number of British and South African aircraft. Their opponents included Bristol Blenheims and Hawker Hurricanes and 410a Squadriglia managed to shoot down 14 enemy aircraft before being disbanded.

The Fiats had their baptism of fire on 17 June, when the Cr. 32s of 411a Squadriglia, flown by Tenente Aldo Meoli and Maresciallo Bossi, attacked three Junkers Ju 86 from 12 SAAF squadron (bound to bomb Wavello), escorted by two Hurricanes of 1 SAAF Squadron. The Fiats shot down one of the Ju 86s and then pounced the Hurricanes, shooting down the one flown by 2/Lt B.L. Griffiths that was killed in the crash. In the hands of a skilful pilot the CR.32 could still defeat faster, more powerful, better armed monoplanes. On 23 February 1941, while he was attacking Makale airfield, flying a Hurricane, Maj Laurie Wilmot was bounced by ace Alberto Veronese on a Fiat biplane. Wilmot was forced to crash land (and became a PoW). Soon after, Capt Andrew Duncan hit Veronese, who bailed out wounded.

Fourteen CR.32s of 160° Gruppo and nine of 2° Gruppo from 6° Stormo saw action against Greece in the first weeks after the attack of 28 October 1940. Eight more from 163a Squadriglia, based in Gadurrx  airport, on Rhodes island, took part in the occupation of Crete. CR.32s of 3° Gruppo operated in Sardinia but in the period July-December 1940, their number had fallen from 28 to seven serviceable aircraft. The last front line CR.32 survived until mid-April 1941 when the "Freccias" were sent to the Scuola Caccia (Schools for fighter pilots). By 1942, the type was relegated to only night missions as newer fighters were put into service.

International use

China

The first international operator of the CR.32 was Chiang Kai-shek for China that already in 1933 ordered 16 (according to other sources 24) CR.32s of the first series. The aircraft had Vickers 7.7 mm machine guns instead of the Breda-SAFAT, electric headlights, the little cooling fins on the oil tank in the nose were removed and some were equipped with radios. They were based at Nangahang airport, near Shanghai. Some officers of the Chinese high command disliked the Fiat, but Chinese pilots appreciated that the Italian biplanes in comparative tests proved superior to American Curtiss Hawk and Boeing P-26. The Chinese Government did not order more Fiats as it was difficult to import alcohol and benzole to mix with petrol for the engines. In May 1936, only six "Freccias" were still operational. In August 1937, the remaining CR.32s were used with some initial success in Shanghai against the invading Japanese. By late 1937 when the Chinese capital at Nanjing fell, all Fiats were lost.

Austria

In spring 1936 45 CR.32s were ordered by Austria to equip Jagdgeschwader II at Wiener Neustadt. But in March 1938 the Austrian units were absorbed into Luftwaffe. After a brief period the 36 remaining aircraft were handed over to Hungary.

Hungary

The Magyar Kirx¡lyi Honvéd LégierÅ‘, the Royal Hungarian Air Force, acquired a total of 76 CR.32s in 1935 and 1936. MKHL Fiat biplanes had their baptisme of fire in 1939, during the short conflict with the new state of Slovakia. The CR.32s, with the red/white/green chevrons insignia, easily gained air superiority over the new Slovak Air Force that lost a few Avia B.534s and Letov S-328s. During the short conflict against Yugoslavia, in April 1941, the MKHL lost three CR.32s and, on 6 May 1941, the Hungarian Air Force had still 69 Fiat CR.32 on line. When, in June 1941, the kingdom of Hungary declared war to Soviet Union, the CR.32s equipped two of the units that supported the Hungarian Army on the Eastern Front: 1./I Group of 1st Fighter Wing, based in Szolnok, and 2./I Group, of 2nd Fighter Wing, based at Nyx­regyhx¡za. On 29 June, the first aerial combat over Hungary took place, when seven Tupolev SB-2 bombers attacked the railway station of Csap and where intercepted by the Fiat CR.32s from 2/3 Fighter squadron. The Fiat biplanes shot down three of the raiders, for no loss to themselves.

South America

In 1938, Venezuela acquired nine (according to other sources, 10 aircraft ) CR.32quaters. Modifications included a larger radiator to assist engine cooling in tropical climate conditions. The aircraft were delivered to Maracay in the second half of 1938 and equipped the 1° Regimiento de Aviacix³n Militar del Venezuela. With five CR.32s still servicable, the aircraft were struck off charge in 1943.

A small number, estimated at four, went to Paraguay in 1938. Five CR.32quater fighters (registered 1-1, 1-3, 1-5, 1-7 and 1-9) were assigned to 1.a Escuadrilla de Caza of the Fuerzas Aéreas del Ejército Nacional del Paraguay. They did not arrive in time for military operations against Bolivia, but were in service for several years.

Variants

The Regia Aeronautica ordered 1,080 CR.32s (including the two prototypes and 23 aircraft rebuilt by SCA factory in Guidonia, near Rome, plus 52 without military registry numbers for Hungary). With 100 more CR.32quaters licence-built in Spain (as the Hispano Ha. 132L Chirri), the total CR.32 production numbers range from 1,306 to 1,332 examples.

CR.32 Armed with twin 7.7 mm (.303 in) or 12.7 mm (.5 in) machine guns and powered by 447 kW (600 hp) Fiat A.30 RAbis engine. Delivered to the Regia Aeronautica between March 1934 and February 1936.

CR.32bis Close-support fighter version armed with twin Breda-SAFAT Mod.1928Av. 7.7 mm (.303 in) (a common field modification was to discard the 7.7 mm armament to reduce weight) and twin 12.7 mm (.5 in) machine guns. Bomb racks with ability to carry 100 kg (220 lb) bombload possible: 1 x— 100 kg (220 lb) or 2 x— 50 kg (110 lb).

CR.32ter Revised CR.32bis with many improved features.

CR.32quater Revised CR.32ter with reduced weight, added radio and max speed 356 km/h (221 mph) at 3,000 m (9,843 ft); 337 built for the Regia Aeronautica.

CR.33 Only three prototypes were built.

CR.40 One prototype powered by a Bristol Mercury IV radial engine.

CR.40bis One prototype only.

CR.41 One prototype only.

HA-132L Chirri Spanish version; 100 were built and 49 more of those used during the war were re-built. A total of 40 were transformed into two-seaters and kept in service as an aerobatic trainer till 1953.

Operators

Austria

Austrian Air Force received 45 CR.32bis aircraft

China

Chinese Nationalist Air Force

Chile

Chilean Air Force

Germany

Luftwaffe operated former Austrian aircraft

Hungary

Royal Hungarian Air Force

Italy

Regia Aeronautica

Paraguay

Paraguayan Air Arm ordered five aircraft in 1938.

Spanish State

Spanish Air Force

Venezuela

Venezuelan Air Force ordered nine aircraft in 1938.

Specifications (CR.32)

General characteristics

Crew: 1
Length: 7.47 m (24 ft 6 in)
Wingspan: 9.5 m (31 ft 2.25 in)
Height: 2.36 m (7 ft 9 in)
Wing area: 22.1 m² (237.88 ft²)
Empty weight: 1,455 kg (3,210 lb)
Loaded weight: 1,975 kg (4,350 lb)
Powerplant: 1 x— Fiat A30 RA-bis V12, 447 kW (600 hp)

Performance

Maximum speed: 360 km/h (224 mph)
Range: 781 km (485 mi)
Service ceiling: 8,800 m (28,870 ft)
Rate of climb: 9 m/s (1,822 ft/min)

Armament

Guns: 2 x— 7.7 mm (.303 in) or 12.7 mm (.5 in) Breda-SAFAT machine guns
Bombs: Up to 100 kg (220 lb)

Related development

Fiat CR.42

Comparable aircraft

Polikarpov I-15

Bibliography

Apostolo, Giorgio. Fiat CR 32 (Ali D'Italia 4). (in Italian/English). Torino, Italy: La Bancarella Aeronautica, 1996. No ISBN.
Cattaneo, Gianni. The Fiat CR.32 (Aircraft in Profile Number 22). Leatherhead, Surrey, UK: Profile Publications Ltd., 1965.
"Connaissance de l'Histoir Hachette." Avions Militaires 1919-1939 Profils et Histoire (in French). Paris: 1979.
De Marchi, Italo, Enzo Maio, Pietro Tonizzo and Gianfranco Munerotto. Macchi MC.200 "Saetta" - Fiat CR.32 (Italian). Modena: Stem Mucchi, 1994.
Green, William and Gordon Swanborough. The Complete Book of Fighters. New York: Smithmark, 1994. ISBN 0-8317-3939-8.
Green, William and Gordon Swanborough. "The Facile Fiat... Rosatelli's Italian Fighter." Air Enthusiast Twenty-two, August-November 1983. Bromley, Kent, UK: Pilot Press Ltd., 1983.
Gunston, Bill. The Illustrated Directory of Fighting Aircraft of World War II. London: Salamander Books Limited, 1988. ISBN 1-84065-092-3.
Logoluso, Alfredo. Fiat CR.32 Aces of the Spanish Civil War. Oxford, UK: Osprey Publishing, 2010. ISBN 978-1-84603-983-6.
Maliza, Nicola. Il Fiat C.R. 32 - Poesia del Volo (Italian). Rome: Edizioni dell'Ateneo & Bizzarri, 1981.
Maslov, Mikhail A. Polikarpov I-15, I-16 and I-153. Oxford, Osprey Publishing, 2010. ISBN 978-1-84603-981-2.
McCullough, Anson. "La Cucaracha." Airpower, Volume 28, No. 5, September 1998.
Mondey, David. The Hamlyn Concise Guide to Axis Aircraft of World War II. London: Bounty Books, 2006. ISBN 0-753714-60-4.
Neulen, Hans Werner. In the Skies of Europe. Ramsbury, Marlborough, UK: The Crowood Press, 2000. ISBN 1-86126-799-1.
Punka, George. Fiat CR 32/CR 42 in Action (Aircraft Number 172). Carrollton, TX: Squadron/Signal, 2000. ISBN 0-89747-411-2.
Sgarlato, Nico. Fiat CR.32 Freccia - CR.42 Falco (Italian). Parma, Italy: Delta Editrice, 2005.
Shores, Christopher. Air Aces. Greenwich, CT: Bison Books, 1983. ISBN 0-86124-104-4.
Sutherland, Jon and Diane Canwell. Air War East Africa 1940-41. Barnsley, South Yorkshire, UK: Pen and Sword Aviation, 2009. ISBN 978-1-84415-816-4.
Thomas, Andrew. Hurricane Aces 1941-45. Oxford,UK/New York: Osprey Publishing, 2003.ISBN 1-84176-610-0.
Westburg, Peter. "Dogfight over Ruthenia." Airpower, Volume 13, No. 6, November 1983.
