The Fokker E.IV was the final variant of the Eindecker fighter aircraft that was operated by Germany during World War I.

Design and development

Given the Fokker designation of M.15, the E.IV was essentially a lengthened Fokker E.III powered by the 119 kW (160 hp) Oberursel U.III two-row, 14-cylinder rotary engine, a copy of the Gnome Double Lambda. The more powerful engine was intended to enable the Eindecker to carry two or three 7.92 mm (.312 in) machine guns, thereby increasing its firepower and providing redundancy if one gun jammed - a common occurrence at the time. However, the E.IV was a troubled design that never achieved the success of its predecessor and was soon out-classed by French and British fighters.

Picture - Triple lMG 08 machine gun mount in Kurt Wintgens' Fokker E.IV, May 1916

Picture - German Oberursel U.III engine in museum

The prototype E.IV was accepted for testing by the German Inspektion der Fliegertruppen in September 1915. It was fitted with three forward-firing 7.92 mm (.312 in) lMG 08 "Spandau" machine guns, mounted to fire upwards at 15°. Anthony Fokker demonstrated the E.IV at Essen but the complicated triple-synchronisation gear failed and the propeller was damaged. The removal of the left-side gun is believed to have been pioneered on Oswald Boelcke's E.IV, believed to have borne IdFlieg serial 123/15, with a simpler double-synchronisation system used on the retained center-line and right side MG 08 Spandau guns. The fitment of dual MG 08 "Spandau" forward-firing, synchronized machine guns became the standard armament for production E.IVs, and indeed for all subsequent German D-type biplane fighters. The angling of the guns was also abandoned.

Operational history

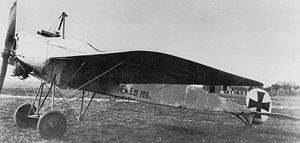

Picture - Fokker E.IV with three gun installation.

The modified prototype underwent combat evaluation on the Western Front by Oberleutnant Otto Parschau in October 1915, making it the first twin-gun fighter in service. Leading German ace Oswald Boelcke evaluated the E.IV at Fokker's Schwerin factory in November. The pilots discovered that mounting the much heavier Oberursel U.III onto the Eindecker airframe did not produce a better aircraft - one pilot described it as "practically a flying engine." The inertial and gyroscopic forces of the spinning mass made the E.IV less manoeuvrable than the E.III and any loss of efficiency from the notoriously unreliable engine made the aircraft virtually uncontrollable, requiring the engine to be switched off. Turning under such conditions was exceedingly difficult because the E.IV still used wing warping instead of ailerons. Furthermore, the engine worked well when new, but lost power after only a few hours of operation.

Only 49 E.IVs were built out of the total Eindecker production run of 416 aircraft. Over half of the E.IVs entered service in June 1916 and the last were delivered in December 1916 by which time they were obsolete.

Operators

German Empire

Luftstreitkrx¤fte operated 48 aircraft.
Kaiserliche Marine received one aircraft.

Specifications (E.IV)

General characteristics

Crew: one, pilot
Length: 7.5 m (24 ft 7 in)
Wingspan: 10 m (32 ft 9½ in)
Height: 2.7 m (9 ft 1 in)
Wing area: 15.9 m² (172.2 ft²)
Empty weight: 466 kg (1,027 lb)
Max takeoff weight: 724 kg (1,596 lb)
Powerplant: 1x— Oberursel U.III 14-cylinder two-row air-cooled rotary engine, 119 kW (160 hp)

Performance

Maximum speed: 170 km/h (105 mph)
Range: 240 km (149 mi)
Service ceiling: 3,960 m (13,000 ft)
Rate of climb: 250 m/min (820 ft/min)

Armament

2 x— forward-firing 7.92 mm (.312 in) LMG 08 "Spandau" machine guns
