Gloster VI

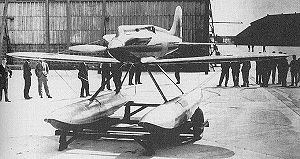

Picture - Gloster VI N249 outside Calshot hangars

Role: Racing seaplane
Manufacturer: Gloster
Introduction: 1929
Primary user: Royal Air Force, High Speed Flight
Number built: 2
Program cost: £25,000

The Gloster VI was a racing seaplane developed as a contestant for the 1929 Schneider Trophy by the Gloster aircraft company.

The aircraft was known as the Golden Arrow, partly in reference to its colour, the distinctive three-lobed cowling of the 'broad-arrow' Napier Lion engine, but also to another contemporary Lion-powered record-breaker, Henry Segrave's Golden Arrow land speed record car.

Design and development

The Gloster VI was Gloster's final evolution of a series of racing floatplanes, designed specifically for the Schneider Trophy. It progressed from the Gloster II, through the successful Gloster III (placed 2nd in 1925), and Gloster IV biplanes. While Henry Folland, Gloster's chief designer commenced work on a further revised biplane, the Gloster V, to enter the 1929 competition, centre of gravity problems led to the design being discarded, and this together with the biplane configuration being obsolete and too high-drag, meant a monoplane configuration was chosen for the new design.

The Gloster VI was a low-winged braced monoplane. An obvious feature in photographs is the way that the wing roots tapered so as to reduce in thickness, designed to increase lateral control at low speeds. It retained the Napier Lion engine that had powered the previous Gloster racers, but with power boosted to 1,320 hp (985 kW) by supercharging. Engine cooling was via thin surface radiators on each wing.

Operational history

Two aircraft, with serial numbers N249 & N250, were built, the first flying on 25 August 1929, and the second on 31 August.

They showed promise and high speed, but also had significant problems with fuel supply when banking that led to engine cut-outs. For such a risky business as low-altitude air-racing, this was an unacceptable risk and the aircraft were withdrawn from competition in the 1929 Schneider Trophy, leaving the way clear for the Supermarine S.6 to win. An alternative theory for the withdrawal is rumoured to have been an accident to the lorry delivering the engines from Napier, and insufficient time to repair the damage until the day after.

On 10 September 1929, the day after the Supermarine S.6 had won the Trophy, N249 returned to flight. Flight Lieutenant George Stainforth flew her over a measured mile course for a top speed of 351.3 mph and a ratified world absolute speed record, averaged over four runs of 336.3 mph. This record was held only briefly, as a later run by Squadron Leader Augustus Orlebar in the S.6 managed to raise it over 350 mph.

During the final Schneider Trophy in 1931, the Gloster VI was still in service with the High Speed Flight for training purposes.

Operators

United Kingdom

Royal Air Force, High Speed Flight

Specifications

Data from

General characteristics

Crew: 1
Length: 27 ft 0 in (8.2 m)
Wingspan: 26 ft 0 in (7.93 m)
Height: 10 ft 9½ in (3.29 m)
Wing area: 106 ft² (9.8 m²)
Empty weight: 2,284 lb (1,036 kg)
Loaded weight: 3,680 lb (1,670 kg)
Powerplant: 1x— Supercharged Napier Lion VIID inline engine, 1,320 hp (984 kW)
Propellers: two bladed fixed-pitch Gloster

Performance

Maximum speed: 351.3 mph (565.3 km/h, 305 knots) World speed record of 336.3 mph (584.9 km/h, 292.4 knots) over four runs on a measured mile course
Stall speed: 92 mph (148 km/h, 80 knots)
Wing loading: 34.7 lb/ft² (170 kg/m²)
Power/mass: 0.36 hp/lb (0.59 kW/kg)

Comparable aircraft

Macchi M.52
Supermarine S.6

James, Derek J. (1971). Gloster Aircraft since 1917. London: Putnam. ISBN 0 370 00084 6.
Mondey, David (1981). "Britain Captures Schneider Trophy". Air Enthusiast (Bromley, Kent, UK: Pilot Press) (Seventeen, December 1981 - March 1982): pp.36-50. ISSN 0143-5450.
