Kaman HH-43 Huskie

HH-43 Huskie

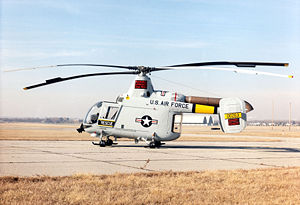

Aircraft Picture - HH-43 Huskie

Role: Firefighting/rescue
Manufacturer: Kaman Aircraft
First flight: 1947
Status: Retired
Primary users: United States Air Force United States Marine Corps United States Navy

The Kaman HH-43 Huskie was a helicopter used by the United States Air Force, the United States Navy and the United States Marine Corps from the 1950s until the 1970s. It was primarily used for aircraft firefighting and rescue in the close vicinity of air bases, but was later utilized as a short range overland search and rescue aircraft during the Vietnam War. Under the U.S. Navy's pre-1962 aircraft designation system, U.S. Navy and U.S. Marine Corps versions were originally designated as the HTK, HOK or HUK, contingent upon their use as training, observation or utility aircraft.

Design and development

The Huskie had an unusual inter-meshing contra-rotating twin-rotor arrangement with control effected by servo-flaps. The first prototype flew in 1947 and was adopted by the U.S. Navy with a piston-engine. It was later adopted by the Air Force in turboshaft HH-43B and F versions.

Operational history

This aircraft saw use in the Vietnam War with several detachments of the Pacific Air Rescue Center, the 33d, 36th, 37th, and 38th Air Rescue Squadrons, and the 40th Aerospace Rescue and Recovery Squadron, where the aircraft was known by its call sign moniker "Pedro". The HH-43 was eventually replaced by newer aircraft in the early 1970s.

Variants

Airplane Picture - A USAF Huskie aids a practice firefighting operation at Cam Ranh Bay AB, Vietnam in 1968. Note the aircraft's jungle camoflauge paint scheme.

XHTK-1
two two-seat aircraft for evaluation
HTK-1
three-seat production version for the United States Navy, later became TH-43A, 29 built
HTK-1G
one example for evaluation by the United States Coast Guard
HTK-1K
one example for static tests as a drone
XHOK-1
prototype of United States Marine Corps version, two built
HOK-1
United States Marine Corps version powered by a 600 hp R-1340-48 Wasp; later became OH-43D, 81 built
HUK-1
United States Navy version of the HOK-1 with R-1340-52 engine; later became UH-43C, 24 built
H-43A
USAF version of the HOK-1; later became the HH-43A, 18 built
HH-43A
post-1962 designation of the H-43A
H-43B
H-43A powered by a 860shp T-53-L-1B, three-seats and full rescue equipment; later became HH-43B, 200-built
HH-43B
post-1962 designation of the H-43B
UH-43C
post-1962 designation of the HUK-1
OH-43D
post-1962 designation of the HOK-1
TH-43E
post-1962 designation of the HTK-1
HH-43F
HH-43B powered by a 825 shp T-53-L-11A with a reduced diameter rotors, 42 built and conversions from HH-43B
QH-43G
One OH-43D converted to drone configuration

Operators

Burma Colombia Iran

Imperial Iranian Air Force

Morocco Pakistan

Pakistan Air Force

Thailand United States

United States Air Force
United States Marine Corps
United States Navy

Survivors

HH-43 (no variant designated)

Air Mobility Command Museum at Dover Air Force Base, Delaware has HH-43, AF Serial Number 62-4532, on display.
The Helicopter Museum Bueckeburg in Germany has an HH-43 on display.
The Pakistan Air Force museum in Karachi has an HH-43 Huskie on static display in the open.

HH-43A

Museum of Aviation at Robins Air Force Base, Georgia has an HH-43A on display.
The New England Air Museum has an HH-43A (AF Ser. No. 58-1837) airframe stored.

HH-43B

Hill Aerospace Museum at Hill Air Force Base, Utah has an HH-43B on display.
The Midland Air Museum in Coventry, England is carrying out a restoration on HH-43B, AF Ser. No. 62-4535. The aircraft is usually viewable on display; 24535 is one of only two examples on display in the UK.
The National Museum of the United States Air Force at Wright-Patterson AFB, Ohio has HH-43B, AF Serial Number 60-0263, on display. It was assigned to rescue duty with Detachment 3, 42nd Aerospace Rescue and Recovery Squadron, Kirtland AFB, New Mexico prior to its retirement and flight to the museum in April 1973.
The Olympic Flight Museum in Olympia, Washington has an airworthy HH-43B Huskie on display.
The Military Firefighter Heritage Display on Goodfellow Air Force Base in San Angelo, Texas has a restored HH-43B on display. The tail number displayed after restoration is 58-1481, but should probably be 58-1841 (its number before restoration, and a number corresponding to an HH-43B). This Huskie was a ground trainer (1959-1976) at Sheppard AFB, Texas, so it retained the square-tail empennage that was removed from almost all other Huskies after repeated rotor strikes in heavy winds.
The Royal Thai Air Force Museum, Bangkok, Thailand has an HH-43B on display in the open.

HH-43F

Castle Air Museum at the former Castle AFB in Atwater, California has an HH-43F, AF Serial Number 62-4513, on display.
The New England Air Museum has an HH-43F restored and on display.
Kirtland AFB has an HH-43, listed as an F-model, on display at the southeast corner of Doris Avenue and Aberdeen Drive (coord: 35.05446,-106.595158). This may be the same aircraft listed on other websites as being located at the National Atomic Museum which has since moved off-base, but adjacent to, Kirtland AFB.
The Pima Air and Space Museum adjacent to Davis-Monthan AFB in Tucson, Arizona has an HH-43F, AF Ser. No. 62-4531 on display. This aircraft is on loan from the National Museum of the United States Air Force.

HOK-1/OH-43D

Airplane Picture - Kaman HOK-1 (OH-43D) Huskie on display at Pima Air & Space Museum

The Flying Leathernecks Museum, MCAS Miramar, California displays Bureau Number (BuNo) 139990 in USMC markings. The aircraft is on loan from the National Museum of Naval Aviation at NAS Pensacola, Florida. It was previously on display at MCAS Tustin, California, but was moved to MCAS Miramar after MCAS Tustin was closed and NAS Miramar was transferred from control of the Navy to the Marine Corps.
Pima Air & Space Museum in Tucson, Arizona displays BuNo 139974 in USMC markings. This aircraft is also on loan from the National Museum of Naval Aviation.
The U.S. Army Aviation Museum at Fort Rucker, Alabama has Navy BuNo 138101 in storage. 138101 was formerly displayed at the National Museum of Naval Aviation at NAS Pensacola, Florida. It was repainted from its original USMC markings to pre-Vietnam Army colors when it was loaned to the Army.
The Carolinas Aviation Museum at Charlotte-Douglas International Airport, has HOK-1, BuNo 139990, in Marine Corps markings. The aircraft is currently under restoration.
The New England Air Museum has a HOK-1 airframe, BuNo 129801, stored.

In addition to museum displays, there are a number of Huskies which are in private hands, purchased for agricultural or general operations.

Specifications (HH-43F)

Data from National Museum of the United States Air Force

General characteristics

Crew: Four: two pilots, two rescue crew
Length: 25 ft 0 in (7.6 m)
Main rotor diameter: 2x— 47 ft in (14.3 m)
Height: 17 ft 2 in (5.18 m)
Gross weight: 9,150 lb (4,150 kg)
Powerplant: 1 x— Lycoming T53 turboshaft, 860 hp (640 kW) each

Performance

Maximum speed: 120 mph (190 km/h)
Cruise speed: 105 mph (169 km/h)
Range: 185 miles (298 km)
Service ceiling: 25,000 ft (7,620 m)

U.S. Army Aviation and Missile Command

Related development

Kaman K-MAX
Kaman K-1125

Comparable aircraft

Flettner Fl 282

Bibliography

Chiles, James R. The God Machine: From Boomerangs to Black Hawks: The Story of the Helicopter. New York: Bantam Books, 2007. ISBN 0-553-80447-2.
Francillon, René J. McDonnell Douglas Aircraft since 1920: Volume II. London: Putnam, 1997. ISBN 0-85177-827-5.
Frawley, Gerard. The International Directory of Civil Aircraft, 2003-2004. Fyshwick, Canberra, Act, Australia: Aerospace Publications Pty Ltd., 2003, p. 155. ISBN 1-875671-58-7.
Munson, Kenneth. Helicopters and other Rotorcraft since 1907. London: Blandford Publishing, 1968. ISBN 978-0-7137-0493-8.
Thicknesse, P. Military Rotorcraft (Brassey's World Military Technology series). London: Brassey's, 2000. ISBN 1-85753-325-9.
Wragg, David W. Helicopters at War: A Pictorial History. London: R. Hale, 1983. ISBN 0-7090-0858-9.
