Kawasaki Ki-60

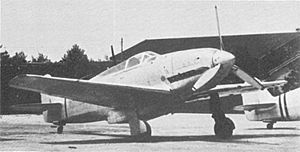

Picture - The first of three prototype KI-60s.

Role: Fighter
National origin: Japan
Manufacturer: Kawasaki Aircraft Engineering
First flight: March 1941
Status: Prototype
Number built: 3

The Kawasaki Ki-60 was an experimental Japanese World War 2 fighter aircraft that used a license-built (Kawasaki) DB 601 liquid-cooled engine. This was at that time an unusual choice because the majority of Japanese aircraft at that time used air-cooled radial engines.

Design and history

The Ki-60 was designed by Takeo Doi and his deputy Shin Owada of Kawasaki Aircraft Industries (å·�å´Žèˆªç©ºå·¥æ©Ÿæ¥­æ ªå¼�会社, Kawasaki Kokuki Kogyo K.K.) in response to a 1939 Koku Hombu (Imperial Japanese Army Aviation Bureau) requirement for a heavily armed specialised interceptor fighter to be powered by the liquid-cooled Daimler-Benz DB 601 inverted V12 engine, which had been selected for license production by Kawasaki as the Ha-40. The emphasis in the requirements was for a high speed and a good rate of climb, along with a cannon armament. This was a complete change from the usual IJAAF penchant for lightly armed, highly manoeuvrable fighters with lightweight structures, epitomised by the Nakajima Ki-27 and the later Nakajima Ki-43. A requirement was issued at the same time for a lighter, less heavily armed, general-purpose fighter which was to be designed almost in parallel with the Ki-60; this became the Ki-61. Priority was to be given to the Ki-60, design of which started in February 1940.

The first prototype of the Ki-60 emerged in March 1941 as a compact, all metal, stressed skin monoplane with a relatively deep fuselage (1.46 metres / 4 feet 9 inches) and tapered wings with rounded tips built around a system of three spars; a Warren truss main spar and two auxiliary spars. The rear spar carried the split flaps and long, narrow chord ailerons, while the front spar incorporated the undercarriage pivot points. The undercarriage track was 3 metres (9 ft 10 in). The pilot's seat was mounted high over the rear spar, giving the fuselage a distinctive "humped" profile; the hood featured a framed, rear sliding canopy and an elongated rear transparent section. The main coolant radiator was housed in a long ventral bath under the wing centre-section and central fuselage, while the oil cooler was mounted under the engine with a long air intake. The prototype was powered by an imported DB 601A as production of the Ha-40 had not yet started. A total fuel capacity of 410 l (90.2 Imp gallons)) was carried.

The armament carried was two synchronized, fuselage mounted 12.7 mm caliber Ho-103 machine guns which were set in a "staggered" configuration (the port weapon slightly further forward than that to starboard) in a bay just above and behind the engine. One German made Mauser MG 151/20 20 mm cannon was housed in a weapons bay in each wing. With a normal loaded weight of 2,890 kilograms (6,400 lb) and a gross wing area of 15.9 square feet (1.48 m) the wing loading was 181.76 kg/m² (37.23 lb/ft²), which was extremely high by Japanese standards (the standard IJAAF fighter, the Ki-27, had a wing loading of 70 kg/m² (14.33 lb/ft²).

From the start of flight testing it became apparent that the design was seriously flawed in several key areas. The take-off run was unacceptably long, while in flight the aircraft displayed some lateral instability, excessively heavy controls and poor control response. The spinning characteristics were described as "dangerous" and the stalling speed was extremely high. Although a top speed of 600 kilometres per hour (370 mph) had been projected the Ki-60 was only able to achieve 548 kilometres per hour (341 mph).

As a result the second and third prototypes, which were still being built, were hurriedly modified in an attempt to mitigate some of the more undesirable traits. Some 100 kilograms (220 lb) was removed, primarily by replacing the MG 151 cannon with Ho-103 machine guns, reducing the normal loaded weight to 2,750 kilograms (6,100 lb). Coupled with a slight increase in wing area to 16.20 square feet (1.505 m) this resulted in a slightly lower wing loading of 169.7 kg/m² (34.76 lb/ft²). Detail changes were made to airframe sealing and to the contours of the air intakes and radiator bath. Flight tests were still disappointing, with both of the modified prototypes displaying most of the shortcomings of the first. A top speed of only 560 kilometres per hour (350 mph) was reached, with a climb rate still well below specifications. By this time the Nakajima Ki-44, which had also been designed as a dedicated interceptor, was beginning to show some promise and the Koku Hombu selected this in fulfilment of its requirements. From early 1941 the full attention of Takeo Doi and Shin Owada was focused on the Ki-61; the Ki-60 became important in that the Ki-61 design was able to be improved using the lessons learned from the poor characteristics of the Ki-60.

Specifications (Ki-60)

Data from Warplanes of the Second World War, Volume Three: Fighters;WW2 Aircraft Fact Files: Japanese Army Fighters, Part 1;Japanese Aircraft of the Pacific War

General characteristics

Crew: One
Length: 8.40 m (27 ft 9.5 in)
Wingspan: 9.78 m (34 ft 5.5 in)
Height: 2.75 m (9 ft 10 in)
Wing area: 16.20 m² (15.9 m² first prototype) (174.376 ft² (171.15 ft²))
Empty weight: 2,150 kg (4,740 lb)
Loaded weight: 2,750 kg (2,890 kg first prototype) (6,063 lb (6,371 lb))
Powerplant: 1x— Daimler-Benz DB 601 liquid-cooled inverted V-12, 875 kW (1,175 hp)

Performance

Maximum speed: 560 km/h (348 mph) at 4,500 metres (14,800 ft)
Service ceiling: 10,000 m (32,810 ft)
Wing loading: 169.8 kg/m² (34.8 lb/ft²)
Power/mass: 3.14 kg/kW (2.34 kg/hp; 5.16 lb/hp)
Time to altitude: 8.0 min to 5,000 metres (16,000 ft) 2nd prototype; 3rd prototype 6.0 min to 5,000 metres (16,000 ft)

Armament

2x 20 mm Mauser MG 151 cannon or 2x 12.7 mm (0.50 in) Ho-103 machine gun in the wings
2x synchronized 12.7 mm (0.50 in) Ho-103 machine gun in the fuselage

Engine cooling

Related development

Kawasaki Ki-61

Bibliography

Bueschel, Richard M. Kawasaki Ki.61/Ki.100 Hien in Japanese Army Air Force Service, Aircam Aviation Series No.21. Canterbury, Kent, UK: Osprey Publications Ltd, 1971. ISBN 0-85045-026-8.
Francillon, Ph.D., René J. Japanese Aircraft of the Pacific War. London: Putnam & Company Ltd., 1970 (2nd edition 1979). ISBN 0-370-30251-6.
Francillon, Ph.D., René J. The Kawasaki Ki-61 Hien (Aircraft in Profile no. 118). Leatherhead, Surrey, UK: Profile Publications Ltd., 1966.
Green, William. Warplanes of the Second World War, Volume Three: Fighters. London: Macdonald & Co. (Publishers) Ltd., 1961 (seventh impression 1973). ISBN 0-356-01447-9.
Green, William and Swanborough, Gordon. WW2 Aircraft Fact Files: Japanese Army Fighters, Part 1. London: Macdonald and Jane's, 1976. ISBN 0-356-08224-5.
Januszewski, Tadeusz and Jarski, Adam. Kawasaki Ki-61 Hien, Monografie Lotnicze 5 (in Polish). Gdańsk, Poland: AJ-Press, 1992. ISSN 0867-7867.
Tanimura, Masami with Kozo Tanaka; Yuji Kishida; Makoto Oda; Yoshiharu Nakano and Saburo Kawasaki. Kawasaki Ki-61 (Tony). Blaine, WA: Paul Gaudette, Publisher, 1967.
Unknown Author(s). Famous Aircraft of the World, no.76: Japanese Army Experimental Fighters (1). Tokyo, Japan: Bunrin-Do Co. Ltd., August 1976.
