Mil Mi-24

Mi-24 / Mi-25 / Mi-35

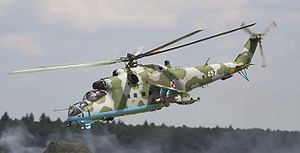

Picture - Mil Mi-24

Role: Attack helicopter with transport capabilities
Manufacturer: Mil
First flight: September 19, 1969
Introduced: 1972
Status: Active
Primary users: Russian Air Force ca. 50 other users (see operators)
Number built: 2000 (estimated)
Developed from: Mil Mi-8
Developed into: Mil Mi-28

The Mil Mi-24 (Cyrillic Миль Ми-24, NATO reporting name 'Hind') is a large helicopter gunship (and attack helicopter) and low-capacity troop transport (Carries 8) produced by Mil Moscow Helicopter Plant and operated from 1972 by the Soviet Air Force, its successors, and over thirty other nations. In October 2007, the Russian Air Force announced it would replace its 250 Mi-24 helicopter gunships with 300 more modern Mi-28s and possibly Ka-50s by 2015.

In NATO circles the export versions, Mi-25 and Mi-35, are simply denoted with a letter suffix as "Hind D" and "Hind E" respectively. Soviet pilots called the aircraft летающий танк (letayushchiy tank, “flying tank”). More common unofficial nicknames were Крокодил (Krokodil, “Crocodile”), due to the helicopter's new camouflage scheme and Стакан (Stakan, “Glass”), because of the flat glass plates which surround the three place cockpit of the Mi-24A.

Development

During the early 1960s, it became apparent to Soviet designer Mikhail Leont'yevich Mil that the trend towards ever-increasing battlefield mobility would result in the creation of flying infantry fighting vehicles, which could be used to perform both fire support and infantry transport missions. The first expression of this concept was a mock-up unveiled in 1966 in the experimental shop of the Ministry of Aircraft's factory number 329 where Mil was head designer. The mock-up designated V-24 was based on another project, the V-22 utility helicopter, which itself never flew. The V-24 was similar in layout and configuration to the UH-1A Huey, with a central infantry compartment that could hold eight troops sitting back to back, and a set of small wings positioned to the top rear of the passenger cabin, capable of holding up to six missiles or rockets, with a twin-barreled GSh-23L cannon fixed to the landing skid.

Picture - Mi-24A

Mil proposed the design to the heads of the Soviet armed forces, and while he had the support of a number of strategists in the armed forces, he was opposed by several more senior members of the armed forces who believed that conventional weapons were a better use of resources. Despite the opposition, Mil managed to persuade the defence minister's first deputy, Marshal Andrey A. Grechko, to convene an expert panel to look into the matter. While the panel's opinions were mixed, supporters of the project eventually held sway, and a request for design proposals for a battlefield support helicopter was issued. The development of gunships and attack helicopters by the US Army during the Vietnam War convinced the Soviets of the advantages of armed helicopter ground support doctrine. This had a positive influence on moving forward with the development of the Mi-24.

Mil engineers prepared two basic designs: a 7-ton single-engine design and a 10.5-ton twin-engine design, both based on the 1,700 hp Izotov TV3-177A turboshaft. Later, three complete mock-ups were produced, along with five cockpit mock-ups to allow the pilot and weapon station operator positions to be fine-tuned.

The Kamov bureau suggested an army version of their Ka-25 Hormone ASW helicopter as a low-cost option. This was considered but later dropped in favor of the new Mil twin-engine design. A number of changes were made at the insistence of the military, including the replacement of the 23 mm cannon with a rapid-fire heavy machine gun mounted in a chin turret, and the use of the then-under development 9K114 Shturm (AT-6 Spiral) anti-tank missile.

Picture - Soviet Mi-24V

A directive was issued on 6 May 1968 to proceed with development of the twin-engine design. Work proceeded under Mil until his death in 1970. Detailed design work began in August 1968 under the codename Yellow 24. A full scale mock-up of the design was reviewed and approved in February 1969. Flight tests with a prototype began on 15 September 1969 with a tethered hover, and four days later the first free flight was conducted. A second prototype was built, followed by a test batch of ten helicopters.

Acceptance testing for the design began in June 1970, continuing for 18 months. Changes made in the design addressed structural strength and fatigue problems, and reduced vibration levels. Also, a 12-degree anhedral was introduced to the wings to address the aircraft's tendency to Dutch roll at speeds in excess of 200 km/h, and the Falanga missile pylons were moved from the fuselage to the wingtips. This gave the helicopter its characteristic wings. The tail rotor was moved from the right to the left side of the tail, and the rotation direction reversed. The tail rotor now rotated up on the side towards the front of the aircraft, into the downwash of the rotor, which increased the efficiency of the tail rotor. A number of other design changes were made until the production version Mi-24A (izdeliye 245) entered production in 1970, obtaining its IOC in 1971. It was officially accepted into the state arsenal in 1972.

Russia has developed the Mi-28 Havoc and Ka-50 attack helicopters, which are smaller and more maneuverable and do not have the large cabin for carrying troops. The Russian Navy however has no plans to retire their small number of Mi-24s. As for the Russian air force the service is severely short of funds, the "krokodil" will serve for many years to come.

Design

Picture - Russian Air Force Mi-24P

The core of the aircraft was derived from the Mil Mi-8 (NATO reporting name "Hip"): two top-mounted turboshaft engines driving a mid-mounted 17.3 m five-blade main rotor and a three-blade tail rotor. The engine configuration gave the aircraft its distinctive double air intake. Original versions have an angular greenhouse-style cockpit; Model D and later have a characteristic tandem cockpit with a "double bubble" canopy. Other airframe components came from the Mi-14 "Haze". Two mid-mounted stub wings provide weapon hardpoints, each offering three stations, in addition to providing lift. The load-out mix is mission dependent; Mi-24s can be tasked with close air support, anti-tank operations, or aerial combat.

The body is heavily armored and can resist impacts from .50 caliber (12.7 mm) rounds from all angles, including the titanium rotor blades. The cockpit is an even more heavily armored titanium tub and can resist impact from 37mm cannon rounds. The cockpit and crew compartment are overpressurized to protect the crew in NBC conditions.

Picture - Mi-24D cockpit

Considerable attention was given to making the Mi-24 fast. The airframe was streamlined, and fitted with retractable tricycle undercarriage landing gear to reduce drag. The wings provide considerable lift at high speed, up to a quarter of total lift. The main rotor was tilted 2.5� to the right from the fuselage to counteract dissymmetry of lift at high speed and provide a more stable firing platform. The landing gear was also tilted to the left so the rotor would still be level when the aircraft was on the ground, making the rest of the airframe tilt to the left. The tail was also asymmetrical to give a side force at speed, thus unloading the tail rotor.

A modified Mi-24B, named A-10, was used in several speed and time to climb world record attempts. The helicopter had been modified to reduce weight as much as possible, and among the measures used was to remove the stub wings. The speed record over a closed 1000 km course set on August 13, 1975 of 332.65 km/h still stands, as does many of the female specific records set by the all female crew of Galina Rastorgoueva and Ludmila Polyanskaia. On 21 September 1978 the A-10 set the absolute speed record for helicopters with 368.4 km/h over a 15/25 km course. The record stood until 1986 when it was broken by the current record holder, a modified Westland Lynx.

Picture - US-operated Mi-24P Hind-F

Comparison to Western helicopters

As a combination gunship and troop transport, the Mi-24 has no direct NATO counterpart. While UH-1 ("Huey") helicopters were used in Vietnam either to ferry troops, or were used as gunships, they were not able to do both at the same time. Converting a UH-1 into a gunship meant stripping the entire passenger area to accommodate extra fuel and ammunition, and removing its troop transport capability. The Mi-24 was designed to do both, and this was greatly exploited by airborne units of the Soviet Army during the 1980-1989 Soviet war in Afghanistan. The closest Western equivalent was the Sikorsky S-67 Blackhawk, which used many of the same design principles and was also built as a high-speed, high-agility attack helicopter with limited troop transport capability; it, like the Mi-24, was also designed using many components from an already existing product, the Sikorsky S-61. The S-67, however, was never adopted for service. Another relatively close western equivalent is the US MH-60L Direct Action Penetrator, a special purpose variant of the UH-60 Black Hawk which is capable of mounting a variety of weapons on its stub wings, including AGM-114 Hellfire missiles and Hydra 70 rockets.

Operational history

Ogaden War (1977-1978)

The first use of the Mi-24 in combat was with the Ethiopian forces (although the pilots were Soviet) during the Ogaden War against the Somalis. The helicopters formed part of a massive airlift of military equipment from the Soviet Union, after the Soviets switched sides towards the end of 1977. The helicopters were instrumental in the combined air and ground assault that expelled Somali forces from Ethiopia by the beginning of 1978.

Cambodian-Vietnamese War (1978)

The Mi-24A was extensively used by the Vietnam People's Air Force in the Cambodian-Vietnamese War. The gunships destroyed many Khmer Rouge bases and outposts up until 1986, when KR forces were driven to the border of Thailand.

Chadian-Libyan conflict (1978-1987)

The Libyan air force actively used Mi-24As and Mi-25s during their numerous interventions in Chad's civil war. The Mi-24s were first used in October 1980 in the battle of N'Djamena where they helped the People's Armed Forces seize the capital.

In March 1987 the Armed Forces of the North, which were backed by the USA and France, managed to seize a Libyan air force base at Ouadi-Doum in Northern Chad. Among the aircraft captured during this raid were three Mi-25s. These were turned over to France, which in turn sent one to the United Kingdom and one to the USA.

See also Toyota War and Operation Mount Hope III.

Soviet war in Afghanistan (1979-1989)

The aircraft was operated extensively during the Soviet war in Afghanistan, mainly for bombing Mujahideen fighters. The US supplied heat-seeking Stinger missiles to the Mujahideen, and the Soviet Mi-8 and Mi-24 helicopters proved to be favorite targets of the rebels.

First deployment

Mi-24s were supplied to the Afghan government in April 1979 to deal with Mujahideen guerrillas. The Afghan pilots were well-trained and made effective use of their machines, but the Mujahideen were not easy targets. The first Mi-24 to be lost in action was shot down by guerrillas on 30 May 1979. The situation in Afghanistan grew worse and on 25 December 1979, Soviet troops were committed to the war.

Early combat experience

After a brutal learning curve in the face of Afghan rebels, Mi-24 pilots learned to be dangerous themselves, and the rebels called the Mi-24 "Shaitan-Arba" (Satan's Chariot)". In one case, a Mi-24 pilot who was out of ammunition managed to rescue a company of infantry by maneuvering aggressively towards Mujahideen guerrillas and scaring them off. The Mi-24 was popular with ground troops, since it could stay on the battlefield and provide fire as needed, while "fast mover" strike jets could only stay for a short time before heading back to base to refuel.

The Mi-24's favoured munition was the 80-millimetre (3.1 in) S-8 rocket, the 57 mm (2.2 in) S-5 having proven too light to be effective. The 23 mm (0.91 in) gun pod was also popular. Extra rounds of rocket ammunition were often carried internally so that the crew could land and self-reload in the field. The Mi-24 could carry ten 100-kilogram (220 lb) iron bombs for attacks on strongpoints, while harder targets could be dealt with a load of four 250-kilogram (550 lb) or two 500-kilogram (1,100 lb) iron bombs. Some Mi-24 crews became experts at dropping or tossing bombs precisely on targets. Fuel-air explosive bombs were also used in a few instances, though crews initially underestimated the sheer blast force of such weapons and were caught by shock waves that rattled their teeth.

Combat experience quickly demonstrated the disadvantages of having Mi-24s carrying troops. Gunship crews found the soldiers a concern and a distraction while being shot at, and preferred to fly lightly loaded anyway, especially given their operations from high ground altitudes in Afghanistan. Mi-24 troop compartment armour was often removed to reduce weight. Troops would be carried in Mi-8 helicopters while the Mi-24s provided fire support.

It did prove useful to carry a technician in the Mi-24's crew compartment, handling a light machine gun in a window port. This gave the Mi-24 some ability to "watch its back" while leaving a target area. In some cases a light machine gun was fitted on both sides to allow the technician to move from one side to the other without having to take the machine gun with him. Trying to shift a machine gun from one side of a helicopter to another while it maneuvered under fire was not merely awkward and inconvenient, it was an invitation to deadly accidents.

This weapon configuration still left the gunship blind to the direct rear, and Mil experimented with fitting a machine gun in the back of the fuselage, accessible to the gunner through a narrow crawl-way. The experiment was highly unsuccessful, as the space was cramped, full of engine exhaust fumes, and otherwise unbearable. During a demonstration, an overweight Soviet Air Force general got stuck in the crawl-way. Operational Mi-24s were retrofitted with rear-view mirrors to help the pilot spot threats and take evasive action.

The Mi-24s not only protected helicopter troop assaults and supported ground actions; they also protected convoys, using rockets with flechette warheads to drive off ambushes, performed strikes on predesignated targets, and engaged in "hunter-killer" sweeps. The hunter-killer Mi-24s operated in pairs at minimum, more often groups of four or eight, to provide mutual fire support. The Mujahideen learned to move mostly at night to avoid the gunships, and in response the Soviets trained their Mi-24 crews in night-fighting, dropping parachute flares to illuminate potential targets for attack. The Mujahideen quickly caught on and scattered as quickly as possible when Soviet target designation flares were lit nearby.

High attrition rates

Gunship attrition rates were high. The environment itself, dusty and often hot, was rough on the machines; dusty conditions led to the development of the PZU air intake filters. And of course, the rebels fought back whenever they could. Their primary air-defense weapons early in the war were heavy machine guns and anti-aircraft cannons, though anything smaller than a 23 millimeter gun generally did not do much to the Mi-24. The cockpit glass panels were resistant to 12.7 mm (0.5 in) rounds.

The CIA then began supplying the Afghan rebels with Stinger shoulder-launched, heat-seeking SAMs, and the situation got considerably worse for Mi-24 crews. The Stinger missile locked on to infra-red signals emitted by aircraft, and was able to down aircraft without interference from decoy flares. Countermeasure flares and a missile warning systems were later installed in all Soviet Mi-2, Mi-8, and Mi-24 helicopters, giving pilots a chance to evade the missile. Heat dissipaters were also fitted to exhausts to decrease the Mi-24's heat signature. These reduced the Stinger threat but did not eliminate it.

Mi-24s were also used to shield jet transports flying in and out of Kabul from Stingers. The gunships carried flares to blind the heat-seeking missiles, and if worse came to worst, were under orders to try to take the hit from the missile themselves. The crews called themselves "Mandatory Matrosovs", after a Soviet hero of the Second World War who threw himself across a German machine gun to let his comrades break through.

Mi-24 crews

Mi-24 crews carried AKS-74Us and other hand-held weapons to give them a better chance of survival if forced down. Early in the war, head of Mil Marat Tischenko visited Afghanistan to see what the troops thought of his helicopters, and gunship crews put on several displays for him. They even demonstrated maneuvers such as barrel rolls, which design engineers considered impossible. An astounded Dr. Tischenko commented, "I thought I knew what my helicopters could do, now I'm not so sure!"

End of Soviet involvement in Afghanistan

A Mi-24 was shot down during the night of 2 February 1989, with both crewmen killed. It was the last Soviet Mi-24 lost during nearly ten years of warfare.

Mi-24s in Afghanistan after Soviet withdrawal

Picture - Afghan Mi-35

Mi-24s passed on to pro-Soviet Afghan forces during the war remained in dwindling service in the grinding civil war that continued after the Soviet withdrawal. Some were flown by defectors to Pakistan, and a few of these machines apparently found their way into the hands of the US Army.

Afghan Mi-24s in the hands of the ascendant Taliban gradually became inoperable, but a few flown by the Northern Alliance, which had Russian assistance and access to spares, remained operational up to the US invasion of Afghanistan in the fall of 2001. In 2008, the Afghan National Air Corps took delivery of six refurbished Mi-35 helicopters, purchased from the Czech Republic with US money. The Afghan pilots were trained by India and began live firing exercises in May 2009 in order to escort Mi-17 transport helicopters on operations in restive parts of the country.

Iran-Iraq War (1980-1988)

The Mi-25 saw considerable use by the Iraqi Army during the long war against Iran. Its heavy armament was a key factor in causing severe damage to Iranian ground forces during the war. However, the Mi-25s lacked an effective anti-tank capability, as they were only armed with obsolete 9M17 Skorpion missiles. This led the Iraqis to develop new gunship tactics, with help from East German advisors. The Mi-25s would form "hunter-killer" teams with French-built A�rospatiale Gazelles, with the Mi-25s leading the attack and using their massive firepower to suppress Iranian air defenses, and the Gazelles using their HOT missiles to engage armoured fighting vehicles. These tactics proved effective in halting Iranian offensives, such as Operation Ramadan in July 1982.

Picture - Iraqi Mil Mi-25, brought down during the Iran-Iraq War, on display at a Military museum in Tehran.

This war also saw the only confirmed air-to-air helicopter battles in history with the Iraqi Mi-25s flying against Iranian AH-1J SeaCobras (supplied by the United States before the revolution) on several separate occasions. Not long after Iraq's initial invasion of Iran on 22 September 1980, two Iranian SeaCobras crept up on two Mi-25s and hit them with TOW wire-guided antitank missiles. One Mi-25 went down immediately, the other was badly damaged and crashed before reaching base. The Iranians pulled off a repeat performance on 24 April 1981, destroying two Mi-25s without incurring losses to themselves.

The Iraqis hit back, claiming the destruction of a SeaCobra on 14 September 1983; three SeaCobras on 5 February 1984; and three more on 25 February 1984. After a lull in helicopter losses, each side lost a gunship on 13 February 1986. Later, a Mi-25 claimed a SeaCobra shot down on 16 February, and a SeaCobra claimed a Mi-25 shot down on 18 February. The last engagement between the two types was on 22 May 1986, when Mi-25s shot down a SeaCobra.

The final claim tally was 10 SeaCobras destroyed and 6 Mi-25s destroyed. The relatively small numbers and the inevitable disputes over actual kill numbers makes it unclear if one gunship had a real technical superiority over the other. Iraqi Mi-25s also claimed a total of 43 kills against other Iranian helicopters, such as Agusta-Bell UH-1 Hueys.

In general the Iraqi pilots liked the Mi-25, in particular for its high speed, long range, high versatility and large weapon load, but disliked the relatively ineffectual weapons and lack of agility.

Mi-25 was also used by Iraq in chemical warfare against Iranians and Kurdish civilians in Halabja. There were also claims of fixed wing aircraft downed by Mi-24s, an Iraqi Mi-24 is said to have downed a F-4, the Mi-24 can be armed with AA-8 Aphid missiles

Nicaraguan civil war (1980-1988)

Mi-25s were also used by the Nicaraguan Army during the civil war of the 1980s. Nicaragua received 12 Mi-24s (some sources claim 18) in the mid-1980s to deal with American-backed "Contra" insurgents. The Mi-25s performed ground attacks on the Contras and were also fast enough to intercept light aircraft being used by the insurgents. The US Reagan Administration regarded introduction of the Mi-25s as a major escalation of tensions in Central America.

Two Mi-25s were shot down by Stingers fired by the Contras. A third Mi-24 was damaged while pursuing Contras near the Honduran border, when it was intercepted by Honduran F-86 Sabres and A-37 Dragonflies. A fourth was flown by a defecting Sandinista pilot to Honduras in December 1988.

Sri Lankan Civil War (1987-2009)

The Indian Peace Keeping Force (1987-1990) in Sri Lanka used Mi-24s when an Indian Air Force detachment was deployed there in support of the Indian and Sri Lankan armed forces in their fight against various Tamil militant groups such as the LTTE. It is believed that Indian losses were considerably reduced by the heavy fire support provided by their Mi-24 gunships. The Indians lost no Mi-24s in the operation, as the Tigers had no weapons capable of dealing with the Crocodile at the time, although several sustained heavy damage from machine gun fire.

Since 14 November 1995, the Mi-24 has been used by the Sri Lanka Air Force in the war against the LTTE and has proved highly effective providing close air support for ground forces. The Sri Lanka Air Force currently operates a mix of Mi-24/-35P and Mi-24V/-35 versions attached to its No. 9 Attack Helicopter Squadron. They have recently been upgraded with modern Israeli FLIR and electronic warfare systems. Five were upgraded to intercept aircraft by adding radar, fully functional helmet mounted target tracking systems, and AAMs. More than 5 Mi-24s have been lost to LTTE MANPADs, and another two lost in attacks on airbases, with one heavily damaged but later returned to service.

Persian Gulf War (1991)

Picture - Iraqi Mi-25 (NATO code:Hind-D) captured during the Gulf War.

The Mi-24 was also heavily employed by Iraqis during their invasion of Kuwait, although most were withdrawn by Saddam Hussein when it became apparent they would be needed to help retain his grip on power in the aftermath of the war. In the ensuing 1991 uprisings in Iraq, these helicopters were used against dissidents as well as fleeing civilian refugees.

A few Mi-24s were later sent over the border into Iran, along with many other Iraqi military aircraft, in the hope of sparing them from destruction by allied air strikes.

Some Mi-24 Hinds were captured and later sent to the US and operated by OPTEC/OTSA in Ft. Bliss and Ft. Irwin.

Sierra Leone Civil War (1991-2002)

Three Mi-24Vs owned by Sierra Leone and flown by South African mercenaries were used against RUF rebels. In 1995, they helped drive the RUF from the capital, Freetown. Guinea also used its Mi-24s against the RUF on both sides of the border and was alleged to have provided air support to the LURD insurgency in northern Liberia in 2001-03.

Croatian War of Independence (1990s)

First unveiled in Croatia in 1993, twelve Mi-24s were effectively used in 1995 by the Croatian Army in Operation Storm against Krajina army paramilitaries. The Mi-24 was used to strike deep into the enemy background and paralyze Krajina army communications and command. The actions of Mi-24 were successful and at least two were downed and one Croatian Mi-24 crashed near city of Drvar due to strong winds, both the pilot and the operator survived. The Mi-24 used by the Croatia armed forces were obtained from Ukraine. Years of misuse, lack of spare parts and regular maintenance have grounded all of the Mi-24 and Croatia is offering 6 of them for sale.

First and Second Wars in Chechnya (1990s-2000s)

During the First and Second Chechen Wars, beginning in 1994 and 1999 respectively, Mi-24s were employed by the Russian armed forces. As in Afghanistan, the Mi-24s were vulnerable to rebel tactics. No less than two dozens crashed or were shot down during military operations. A contributing cause to these crashes is the poor maintenance of these ageing helicopters.

Cenepa War (1995)

Peru employed Mi-25s against Ecuadorian forces during the short Cenepa conflict in early 1995. The only loss occurred on February 7, when a FAP Mi-25 was downed after being hit in quick succession by at least two - probably three - Strela shoulder-fired missiles during a low-attitude mission over the Cenepa valley. The three crewmen were killed.

Sudanese Civil War (1995-2005)

In 1995, the Sudanese Air Force acquired six Mi-24s for use in Southern Sudan and the Nuba mountains to engage the SPLA. At least two aircraft were lost in non-combat situations within the first year of operation, but may have been replaced.

A further twelve were bought in 2001, and used extensively in the oil fields of Southern Sudan. Mi-24s were also deployed to Darfur in 2004-2005.

First and Second Congo Wars (1996-2003)

Three Mi-24s were used by Mobutu's army and were later acquired by the new Air Force of the Democratic Republic of the Congo. These were supplied to Zaire in 1997 as part of a French-Serbian contract. At least one was flown by Serbian mercenaries. One hit a power line and crashed on 27 March 1997, killing the three crew and four passengers.

Zimbabwean Mi-24s were also operated in coordination with the Congolese Army.

The UN peacekeeping mission employed Indian Air Force Mi-24/-35 helicopters to provide support during the Second Congo War. The IAF has been operating in the region since 2003.

Kosovo war (1998-1999)

On the night of 1 March 1998, during the fighting against KLA forces during the Kosovo War, a Serbian Special Operations Unit (JSO) landed in the village of Prekaz. One of its Mi-24Vs was hit by small arms fire and made an emergency landing, but the KLA fighters were pushed back by JSO personnel. During the summer of 1998, Mi-24Vs took part in several combat missions. On 27 June, JSO forces used four helicopters to come to the aid of approximately 100 police officers who were surrounded by KLA forces they were also used to secure Serbian civilians fleeing a NATO blockade in the village of Kijevo. The Mi-24Vs and Mi-17s transported ammunition and evacuated wounded.

Conflict in Republic of Macedonia (February 2001 - August 2001)

Picture - Macedonian Mi-24V

The Military of the Republic of Macedonia acquired second hand Ukrainian Mi-24Vs. They were used frequently against Albanian insurgents during the 2001 conflict in Macedonia. The main areas of action were in Tetovo, Radusha and Aracinovo.

Ivorian Civil War (2002-2004)

During the Ivorian Civil War five Mil Mi-24s piloted by mercenaries were used in support of government forces. They were later destroyed by the French Army in retaliation for an air attack on a French base which killed nine soldiers.

Afghanistan War (2001-present)

Picture - Afghan National Army Air Corps Mil Mi-24s

In 2008 and 2009, the Czech Republic donated six Mi-24 under the ANA Equipment Donation Programme. As a result, the Afghan National Army Air Corps (ANAAC) now has the ability to escort its own helicopters with heavily armed attack helicopters. Currently 9 Mi-35 attack helicopters are operated by the ANAAC. Major Caleb M. Nimmo was the first American to fly the Mi-35 Hind in combat.

Polish Helicopter Detachment contributed with Mi-24s to International Security Assistance Force (ISAF). The Polish pilots trained in Germany before deploying to Afghanistan and currently train with U.S. service personnel.

Iraq War (March 2003-2010)

The Polish contingent in Iraq has been using six Mi-24Ds since December 2004. One of them crashed on 18 July 2006 in an air base in Al Diwaniyah. Polish Mi-24Ds used in Iraq will not be returning to Poland due to their age, condition, low combat value of the Mi-24D variant, and high shipping costs; depending on their condition they will be transferred to the New Iraqi Army or scrapped. New Mi-35P will be bought by the Polish Army as "replacements of equipment depleted during combat operations" for the Mi-24Ds used and left in Iraq.

War in Somalia (2006-2009)

The Ethiopian Air Force operates about three Mil Mi-35 and ten Mil Mi-24D helicopter gunships in the Somalian theater. One was shot down near the Mogadishu International Airport on 30 March 2007 by Somali resistance fighters.

War in Chad (2008)

Upon returning to Abeche, one of Chadian Mi-35 made "a hard and forced landing" at the airport. It was claimed that it was shot down by rebels.

South Ossetia war (2008)

During the 2008 South Ossetia war the Mi-24 was used by both Russia and Georgia.

Variants

Since 1978, around 2,000 Mi-24s have been manufactured, 600 for export. In October 2007, defense-aerospace.com reported that the Saudi Arabian government had signed a contract for up to 150 Mi-35 and Mi-17 helicopters worth $2.2 billion.

Operators

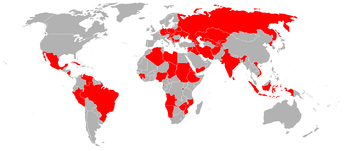

Picture - Military operators of the Mi-24 series.

Picture - Georgian Air Force Mi-24

Afghanistan
Afghan Air Force has received 115 since 1979, with 6 Mi-35 operational.
Algeria
Algerian Air Force
Angola
People's Air and Air Defence Force of Angola
Armenia
Armenian Air Force has 12 in service as of 2010.
Azerbaijan
Azerbaijan Air Force
Belarus
Belarus Air Force
Brazil
Brazilian Air Force - 12 Mi-35M (AH-2 Sabre) ordered in December 2008. Deliveries start in 2009 and finish in 2010. Three have already been delivered in December 2009.
Bulgaria
Bulgarian Air Force - 18 in storage.12 Mi-25 and 6 Mi-35
Burkina Faso
Burkina Faso Air Force 2 delivered from Russia in 2005.
Burundi
Military of Burundi
Chad
Chad Air Force
Cyprus
11 Mi-35Ps has in service as of 2010.
Cuba
Cuban Air Force - 15 Mi-24s
Czech Republic
Czech Air Force
Djibouti
2 delivered from Belarus in 2005. Also Ethiopian deserters reported.
Equatorial Guinea
Eritrea
Eritrean Air Force
Ethiopia
Ethiopian Air Force
Georgia
Georgian Air Force had at least 12 Mi-24s prior to 2008 war with Russia.
Guinea
Hungary
Hungarian Air Force. 49, 20 from the German Army (taken over from East German Air Force)
India

Indian Air Force: 1 Squadron each of Mi-25s and Mi-35s.

Indonesia
Indonesian Army. Eight Mi-35 are in service.
Iran
Ivory Coast
Kazakhstan
Military of Kazakhstan
Kyrgyzstan
Lebanon
to be delivered instead of 10 MiG-29 offered by Russia as a grant.
Libya
Libyan Air Force
Macedonia
Mali
Air Force of Mali 2 supplied by Bulgaria in 2007.
Mexico
Mexican Armed Forces has received the Mi-24VN (Hind-E)
Mongolia
Mongolian Air Force. Ordered 24 in 1984, but received 12 in 1986-1987.
Mozambique
Myanmar
Myanmar ordered 10 Mi-35s in 2009.
Namibia
Namibian Air Force
Nepal
Nepalese Army Air Service. Operates 6 modernized, refurbished and customized Mi-24s. These aircraft were actually used by the Soviet Air Force during the Soviet-Afgan War.
Nicaragua
Nicaraguan Air Force
Niger
Air Force of Niger Unconfirmed. May have been destroyed.
Nigeria
North Korea
North Korean Air Force
Peru
Peruvian Air Force

Picture - Mi-24W (V) of Polish Army

Poland Polish Land Forces and Polish Air Force former operator.

Mi-24Ds, Polish Land Forces 49th Combat Helicopter Regiment (49 Pułk Śmigłowcx�w Bojowych) in Pruszcz Gdański
Mi-24Ds, Polish Land Forces Independent Air Assault Group (Samodzielna Grupa Powietrzno-Szturmowa) in Al Kut and Al Diwaniyah, Iraq
Scorpion aerobatic team
Mi-24Ws, Polish Land Forces 56th Kujawian Combat Helicopter Regiment (56 Kujawski Pułk Śmigłowcx�w Bojowych) in Inowrocław.

Russia 360 in service.

Russian Air Force
Russian Army
Russian Naval Aviation

Rwanda
Saudi Arabia
To order up to 30 Mi-35's.
Senegal
Senegalese Air Force 2 Mi-35 supplied by Russia in 2007.
Slovakia
Slovak Air Force
Sri Lanka
Sri Lanka Air Force's No. 9 Attack Helicopter Squadron operates 15 Mi-24s, including Mi-24D/V/P and Mi-35.
Sudan
Sudanese Air Force
Syria
Syrian Air Force
Tajikistan
Uganda
Ugandan Air Force
Ukraine

Ukrainian Air Force
Ukrainian Ground Forces

USA

The Cold War Air Museum (CWAM) operates 2 Mi-24s from its Museum at Lancaster Airport just south of Dallas, Texas.
U.S. Army operates a number of Fort Bliss, Texas based Mi-24s at Louisiana's Fort Polk for adversary training.
U.S. FAA registry lists 7 privately owned Mi-24s operated by civilians.

Uzbekistan
Military of Uzbekistan
Venezuela
Army of Venezuela. (Mi-35M2)
Vietnam
Vietnamese Air Force
Yemen
Yemen Air Force
Zimbabwe
Air Force of Zimbabwe

Former operators

Croatia
Croatian Air Force. Grounded and retired.
Czechoslovakia
Czechoslovakian Air Force
East Germany
East German Air Force
Germany
51 inherited from East Germany were sold to Hungary, Poland and two to the U.S. Army.
Iraq
Iraqi Air Force
Poland
Polish Air Force
FR Yugoslavia
2 formally operated by Special Operations Unit.
Sierra Leone
United States
US Army OPFOR
Soviet Union

Soviet Air Force
Soviet Army Aviation

Specifications (Mi-24)

Data from Indian-Military.org

General characteristics

Crew: 2-3: pilot, weapons system officer and technician (optional)
Capacity: 8 troops or 4 stretchers
Length: 17.5 m (57 ft 4 in)
Rotor diameter: 17.3 m (56 ft 7 in)

Wingspan: 6.5 m (21 ft 3 in)

Height: 6.5 m (21 ft 3 in)
Disc area: 235 m� (2,530 ft�)
Empty weight: 8,500 kg (18,740 lb)
Max takeoff weight: 12,000 kg (26,500 lb)
Powerplant: 2x� Isotov TV3-117 turbines, 1,600 kW (2,200 hp) each

Performance

Maximum speed: 335 km/h (208 mph)
Range: 450 km (280 miles)
Service ceiling: 4,500 m (14,750 ft)

Armament

Picture - Possible armament configuration on Mi-24W

Internal guns

flexible 12.7 mm Yakushev-Borzov Yak-B Gatling gun on most variants. Maximum of 1,470 rounds of ammunition.
fixed twin-barrel GSh-30K on the Mi-24P. 750 rounds of ammunition.
flexible twin-barrel GSh-23L on the Mi-24VP and Mi-24VM. 450 rounds of ammunition.
PKT passenger compartment window mounted machine guns

flexible 12.7 mm Yakushev-Borzov Yak-B Gatling gun on most variants. Maximum of 1,470 rounds of ammunition.
fixed twin-barrel GSh-30K on the Mi-24P. 750 rounds of ammunition.
flexible twin-barrel GSh-23L on the Mi-24VP and Mi-24VM. 450 rounds of ammunition.

Picture - Yakushev-Borzov YakB-12.7 machine gun

PKT passenger compartment window mounted machine guns

External stores

Total payload is 1,500 kg of external stores.
Inner hardpoints can carry at least 500 kg
Outer hardpoints can carry up to 250 kg
Wing-tip pylons can only carry the 9M17 Phalanga (in the Mi-24A-D) or the 9K114 Shturm complex (in the Mi-24V-F).

Total payload is 1,500 kg of external stores.
Inner hardpoints can carry at least 500 kg
Outer hardpoints can carry up to 250 kg
Wing-tip pylons can only carry the 9M17 Phalanga (in the Mi-24A-D) or the 9K114 Shturm complex (in the Mi-24V-F).

Bomb-load
Bombs within weight range (presumably ZAB, FAB, RBK, ODAB etc.), Up to 500 kg.
MBD multiple ejector racks (presumably MBD-4 with 4xFAB-100)
KGMU2V submunition/mine dispenser pods

Bombs within weight range (presumably ZAB, FAB, RBK, ODAB etc.), Up to 500 kg.
MBD multiple ejector racks (presumably MBD-4 with 4xFAB-100)
KGMU2V submunition/mine dispenser pods

First-generation armament (standard production Mi-24D)
GUV-8700 gunpod (with a 12.7 mm Yak-B + 2x7.62 mm GShG-7.62 mm combination or one 30 mm AGS-17)
UB-32 S-5 rocket launchers
S-24 240 mm rocket
9M17 Phalanga (a pair on each wingtip pylon)

GUV-8700 gunpod (with a 12.7 mm Yak-B + 2x7.62 mm GShG-7.62 mm combination or one 30 mm AGS-17)
UB-32 S-5 rocket launchers
S-24 240 mm rocket
9M17 Phalanga (a pair on each wingtip pylon)

Second-generation armament (Mi-24V, Mi-24P and most upgraded Mi-24D) UPK-23-250 gunpod carrying the GSh-23L B-8V20 a lightweight long tubed helicopter version of the S-8 rocket launcher 9K114 Shturm in pairs on the outer and wingtip pylons

UPK-23-250 gunpod carrying the GSh-23L
B-8V20 a lightweight long tubed helicopter version of the S-8 rocket launcher
9K114 Shturm in pairs on the outer and wingtip pylons

Picture - Mi-35

Popular culture

An SA-330 Puma was equipped with stub wings and a gun turret to mimic a Soviet Mi-24 in the films Red Dawn and most notably Rambo: First Blood Part II and Rambo III. The Mi-24 features repeatedly in the 1987 novel Winter Hawk by Craig Thomas.

Related development

Mil Mi-8
Mil Mi-14
Mil Mi-28
Mil Mi-40

Comparable aircraft

Sikorsky S-67
MH-60L Direct Action Penetrator (DAP)

Living Warbirds: The best warbirds DVD series.

Source: WikiPedia
