Miles Sparrowhawk

M.5 Sparrowhawk

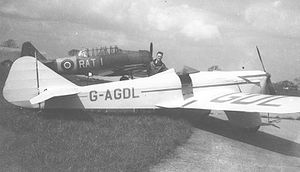

Picture - The sixth Miles Sparrowhawk, operated by Nottingham Flying Club, displayed at Manchester (Ringway) Airport in April 1948. It crashed at Tollerton Airport on 19 June 1948.

Role: Single-seat racing monoplane
Manufacturer: Miles Aircraft Limited
Designed by: Frederick George Miles
First flight: 1935
Produced: 1935-1936
Number built: 6
Developed from: Miles Hawk
Variants: Miles Sparrowjet

The Miles M.5 Sparrowhawk was a 1930s British single-seat racing and touring monoplane designed by Miles Aircraft Limited.

Design and development

The prototype M.5 Sparrowhawk was developed from standard Miles Hawk components as an entry into the King's Cup Race of 1935 piloted by F.G. Miles. The standard Hawk fuselage was shortened and accommodation was for only one pilot, sitting as low as possible. The top decking was reduced in height, a special high-compression version of the de Havilland Gipsy Six engine was fitted, and the undercarriage track was widened. Although the Sparrowhawk won the 1935 speed prize at an average of 163.64 mph (263.35 km/h) over 953 miles (1,534 km), because of heavy handicapping, it only came 9th overall in the race. A further five Sparrowhawks (designated M.5A) were also built as King's Cup Racers and three were delivered to customers but they did not perform spectacularly. In 1936 Victor Smith entered Sparrowhawk G-AELT into the Schlesinger Race from Portsmouth to Johannesburg but had problems with oil after Salonika and eventually retired in Khartoum. The final two M.5A Sparrowhawks were built in 1936 but were not flown until 1940. One was modified and flown to meet a requirement for an experimental aircraft for high-lift flap research with the Royal Aircraft Establishment, it was later de-modified and used as a communications aircraft. The sixth Sparrowhawk was modified with short span wings and wide chord flaps for experimental work.

The prototype, registered G-ADNL, was modified in late 1953 as a jet-powered racer for Fred Dunkerley. The front fuselage and tail unit were modified and it was re-designated the M.77 Sparrowjet. The Sparrowjet was powered by two Turbomeca Palas gas turbine engines fitted in the wing roots and eventually achieved its original purpose and Dunkerley won the King's Cup Race in 1957 at an average speed of 228 mph (367 km/h).

Operational history

The third Sparrowhawk was sold to South Africa in October 1937 as ZS-ANO. It was fitted with a cabin top and was impressed into service with the South African Air Force in 1940.

Variants

M.5 Prototype single-seat racer with a 147 hp de Havilland Gipsy Major engine, one built. M.5A Production version with a 130 hp de Havilland Gipsy Major I engine, 5 built. M.77 Sparrowjet M.5 prototype modified as a jet racer, powered by two Turbomeca Palas jet engines.

Operators

South Africa

South African Air Force

United Kingdom

Civil pilot owners
Royal Aircraft Establishment

Specifications (M.5)

General characteristics

Crew: One
Length: 23 ft 6 in ( m)
Wingspan: 28 ft 0 in ( m)
Height: 5 ft 7 in ( m)
Wing area: 138 ft² ( m²)
Empty weight: 1,080 lb ( kg)
Gross weight: 1,750 lb ( kg)
Powerplant: 1 x— de Havilland Gipsy Major piston engine, 147 hp ( kW) each

Performance

Maximum speed: 180 mph (290 km/h)
Range: 415 miles (668 km)
Service ceiling: 12,470 ft (3,800 m)

Related lists

List of aircraft of the SAAF

Bibliography

Amos, Peter. and Brown, Don Lambert. Miles Aircraft Since 1925, Volume 1. London: Putnam Aeronautical, 2000. ISBN 0-85177-787-0.
Brown, Don Lambert. Miles Aircraft Since 1925. London: Putnam & Company Ltd., 1970. ISBN 0-37000-127-3.
The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985). Orbis Publishing.
Jackson, A.J. British Civil Aircraft since 1919. London: Putnam, 1974. ISBN 0-370-10014-X.
Jackson, A.J. British Civil Aircraft since 1919, Volume 3. London: Putnam, 1988. ISBN 0-85177-818-6.
