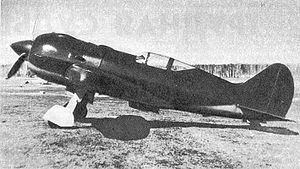

Picture - Side view of the I-185 with a M-71 engine

Role: Fighter
National origin: Soviet Union
Manufacturer: Polikarpov
First flight: 11 January 1941
Status: Cancelled
Number built: 4
Developed from: Polikarpov I-180

The Polikarpov I-185 was a Soviet fighter aircraft designed in 1940. It was flown with three different engines, but all of them were either insufficiently developed for service use or their full production was reserved for other fighters already in production. The I-185 program was cancelled after a yet another engine failure of the favored 2,000-horsepower (1,500 kW) Shvetsov M-71 radial on 27 January 1943.

Design and development

The I-185, designed in early 1940, was based on the I-180, which was itself a development of the I-16, but was virtually a new design. The monocoque fuselage was similarly built of 'shpon', molded birch plywood, and also had an integral tailfin, but it was considerably longer than that of the I-180. The two-spar, all-metal wing was smaller and thinner than the I-180's wing, nearly as thin as that of the Supermarine Spitfire's wing at 13% at the root and tapered to 8% at the wing tip. The wing had a NACA-230 profile and was skinned in duralumin. Pneumatically powered split flaps and leading edge slats were fitted. The outer wing panels had 3� of dihedral. The fabric-covered control surfaces were framed in duralumin. The protected 540-litre (119 imp gal; 143 US gal) fuel tanks were mounted between the wing center section spars. The I-185 used a conventional undercarriage with a retractable tailwheel. The unproven 1,492 kW (2,000 hp) 18-cylinder, two-row Tumansky M-90 radial engine was carried on welded steel tubes. It was fitted with a ducted spinner to improve cooling with the air expelled through gills as in the I-180 to provide additional thrust. The synchronized armament was mounted in the fuselage, two 7.62 mm (0.300 in) ShKAS machine guns and two 12.7 mm (0.50 in) Berezin UBS machine guns. A 500-kilogram (1,100 lb) bomb could be carried under overload conditions. The first prototype was completed in May 1940, but the only available example of the M-90 did not provide enough power for take-off. The prototype was modified to use another experimental engine, the 895-kilowatt (1,200 hp) Shvetsov M-81 radial, but this was not nearly powerful enough for flight tests. The I-185 (M-81) finally took to the air on January 11, 1941, but it was decided not to waste further development and await a more powerful engine which was fortunate as the M-81 was cancelled in May 1941.

A second prototype was completed at the end of 1940 with a 14-cylinder, 1,268 kW (1,700 hp) Shvetsov M-82A radial engine. The forward fuselage had to be redesigned to accommodate the slimmer engine and the armament was revised to three synchronized 30 mm (1.2 in) ShVAK cannon. The drawings for this engine installation was passed to Lavochkin and Yakovlev where they proved very useful in designing their own fighters using the M-82 engine, notably the Lavochkin La-5. A third prototype was also built that used the larger and heavier Shvetsov M-71 radial engine of 1,492 kW (2,000 hp). The flight tests of both of the latter versions were interrupted by the German invasion in June 1941 and all three prototypes, plus the Polikarpov design bureau, were evacuated to Novosibirsk.

Flight testing resumed in early 1942 and the M-71-powered versions, which now included the re-engined first prototype, proved to be faster than the Messerschmitt Bf 109F by 47 km/h (29 mph) at sea level and 20 km/h (12 mph) at 6,000 metres (19,685 ft) with a top speed of 630 km/h (390 mph) at that altitude. It was recommended for immediate production, even before it began combat trials in November 1942. All three aircraft were assigned to the 728th Fighter Aviation Regiment of the 3rd Air Army of the Kalinin Front and were tightly controlled to prevent the loss of the prototypes. For example, all sorties had to be flown over Soviet-controlled territory and required the express permission of the 3rd Air Army staff to fly. Pilots' reports were quite enthusiastic; the 728th's commander, Captain Vasilyaka wrote: "The I-185 outclasses both Soviet and foreign aircraft in level speed. It performs aerobatic maneuvers easily, rapidly and vigorously. The I-185 is the best current fighter from the point of control simplicity, speed, maneuverability (especially in climb), armament and survivability."

Based on the glowing report by the NII VVS (Naoochno-Issledovatel'skiy Institoot Voyenno-Vozdooshnykh Seel-Air Force Scientific Test Institute) in early 1942 preparations began to put the I-185 (M-71) into production. A 'production standard setter (etalon)' aircraft was built in April 1942 with a redesigned engine cowling. Its gross weight increased by 144 kg (320 lb) over the earlier prototypes, but the reduction in drag from the new cowling was significant and the top speed increased to 650 km/h (400 mph) at 5000 meters. It underwent manufacturer's tests between June and October and was submitted for the State acceptance tests on 18 November. However, flight testing was interrupted by the need to replace the engine between 17 December 1942 and 26 January 1943. The new engine failed the next day and the aircraft crashed on 27 January. Flight tests were ordered to be continued with the original prototypes to validate the range figures, but the first prototype crashed on 5 April, killing the pilot as he attempted a dead-stick landing.

All work to put the I-185 into production was cancelled afterwards, even with the M-82 engine, as they were all required for the La-5 fighter. Another reason cited was that the La-5 used the fuselage of the Lavochkin-Gorbunov-Goudkov LaGG-3 which was already in production in three plants and would involve less disruption of the production lines. Another factor may have been that the La-5 required less duralumin to build, something in short supply at the time.

Variants

Polikarpov began preliminary design of two updated versions of the I-185 design in February 1943. The I-187 had a M-71F engine of 1,640 kW (2,200 hp), a bubble canopy, four 20 mm cannons, eight RS-82 rockets and an estimated maximum speed of 710 km/h (441 mph). The I-188 used an improved M-90 engine with 1,552 kW (2,080 hp) and used the same armament as the I-187, although the fuselage was slimmer than that of the I-187 because of the slimmer engine.

Specifications (I-185 (M-71 etalon))

General characteristics

Length: 7.77 m (25 ft 6 in)
Wingspan: 9.80 m (32 ft 2 in)
Height: 2.50 m (8 ft 2 in)
Wing area: 15.53 m� (167.10 ft�)
Empty weight: 2,654 kg (5,840 lb)
Loaded weight: 3,500 kg (7,700 lb)
Powerplant: 1x� Shvetsov M-71 radial engine, 1,492 kW (2,000 hp)

Performance

Maximum speed: 630 km/h (391 mph)
Range: 835 km (520 mi)
Service ceiling: 11,000 m (36,080 ft)
Rate of climb: 16.1 m/s (3,150 ft/min)
Wing loading: 225 kg/m� (46 lb/ft�)
Power/mass: 430 W/kg (0.26 hp/lb)

Armament

3 x� 20 mm ShVAK cannons
Up to 500 kg (1,100 lb) of bombs (2 x� 250 kg (551 lb) or 4 100 kg (220 lb)) or 8 RS-82 rockets

Related development

Polikarpov I-195

Comparable aircraft

Lavochkin La-5
Lavochkin La-7
Focke-Wulf Fw 190
P-47 Thunderbolt
Nakajima Ki-84

Bibliography

Abanshin, Michael E. and Gut, Nina. Fighting Polikarpov, Eagles of the East No. 2. Lynnwood, WA: Aviation International, 1994. ISBN 1-884909-01-9.
Gordon, Yefim and Dexter, Keith. Polikarpov's Biplane Fighters (Red Star, vol. 6). Earl Shilton, Leicester, UK: Midland Publishing, 2002. ISBN 1-85780-141-5
Green, William and Swanborough, Gordon. The Complete Book of Fighters. New York: Smithmark Publishers, 1994. ISBN 0-8317-3939-8.
Gordon, Yefim. Soviet Airpower in World War 2. Hinckley, England: Midland Publishing, 2008 ISBN 978-1-85780-304-4
Guglya, Yu. A. and Ivanov, V.P. (Гугля, Ю.А., Иванов, В.П.) "Rokovoi I-180" ("Роковой И-180") ("The Fatal I-180") (Russian). Aerohobbi nr.1/94, 1994.
Gunston, Bill. The Osprey Encyclopaedia of Russian Aircraft 1875-1995. London, Osprey, 1995 ISBN 1-85532-405-9
Kopenhagen, W. (ed.) Das grox�e Flugzeug-Typenbuch. Transpress, 1987. ISBN 3-344-00162-0.
L�onard, Herbert. Les avions de chasse Polikarpov. Rennes, France: x�ditions Ouest-France, 1981. ISBN 2-85882-322-7. (French)
L�onard, Herbert. Les chasseurs Polikarpov. Clichy, France: x�ditions Larivix�re, 2004. ISBN 2-914205-07-4. (French)
Maslov, Mikhail (Маслов, Михаил). И-180 / И-185 (I-180/I-185) (Russian). Moscow: Tekhnika-molodezhi; Vostochnyi gorizont, 2003.
