Supermarine Spiteful

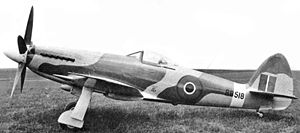

Picture - The 494 mph Spiteful XVI, RB518

Role: Fighter
Manufacturer: Supermarine
Designed by: Joe Smith
First flight: 30 June 1944
Status: Out of service
Primary user: Royal Air Force
Number built: 19 (2 prototypes and 17 production)
Developed from: Supermarine Spitfire
Variants: Supermarine Seafang Supermarine Attacker

The Supermarine Spiteful was a British Rolls-Royce Griffon-engined fighter aircraft designed by Supermarine to Air Ministry specification F.1/43 during the Second World War as a successor to the Spitfire.

Design and development

By 1942, Supermarine designers had realised that the aerodynamics of the Spitfire's wing at high Mach numbers might become a limiting factor in increasing the aircraft's high-speed performance. The main problem was the aeroelasticity of the Spitfire's wing; at high speeds the relatively light structure behind the strong leading edge torsion box would flex, changing the airflow and limiting the maximum safe diving speed to 480 mph (772 km/h) IAS. If the Spitfire was to be able to fly higher and faster a radically new wing would be needed.

Joseph Smith and the design team were aware of a paper on compressibility, published by A D Young of the R.A.E, in which he described a new type of wing section; the maximum thickness and camber would be much nearer to the mid-chord than conventional airfoils and the nose section of this airfoil would be close to an ellipse. On November 1942 Supermarine issued Specification No 470 which (in part) stated;

A new wing has been designed for the Spitfire with the following objects[sic]; 1)To raise as much as possible the critical speed at which drag increases, due to compressibility, become serious. 2) To obtain a rate of roll faster than any existing fighter. 3) To reduce wing profile drag and thereby improve performance. The wing area has been reduced to 210 sq ft and a thickness chord ratio of 13% has been used over the inner wing where the equipment is stored. Outboard the wing tapers to 8% thickness/chord at the tip.

A new wing has been designed for the Spitfire with the following objects[sic]; 1)To raise as much as possible the critical speed at which drag increases, due to compressibility, become serious. 2) To obtain a rate of roll faster than any existing fighter. 3) To reduce wing profile drag and thereby improve performance. The wing area has been reduced to 210 sq ft and a thickness chord ratio of 13% has been used over the inner wing where the equipment is stored. Outboard the wing tapers to 8% thickness/chord at the tip.

Specification 470 described how the wing had been designed with a simple straight-tapered planform to simplify production and to achieve a smooth and accurate contour. The wing skins were to be relatively thick, aiding torsional rigidity which was needed for good aileron control at high speeds. Although the prototype was to have a dihedral of 3° it was intended that this would be increased in subsequent aircraft. Another change, to improve the ground-handling, was replacing the Spitfire's narrow-track, outward-retracting undercarriage with a wider-track, inward-retracting system. The Air Ministry were impressed by the proposal and, in February 1943, issued Specification F.1/43 for a single seat fighter with a laminar flow wing; there was also to be provision made for a wing folding scheme to meet possible FAA requirements. The new fighter was to use a fuselage based on a Spitfire VIII.

The new wing was fitted to a modified Spitfire XIV NN660, in order to make a direct comparison with the earlier elliptical wing, and was first flown on 30 June 1944 by Jeffrey Quill. Although the new Spitfire's speed performance was comfortably in excess of an unmodified Spitfire XIV, the new wing displayed some undesirable behaviour at the stall which, although acceptable, did not come up to the high standards of Mitchell's earlier elliptical wing. NN660 crashed 13 September 1944, killing pilot Frank Furlong. No reason for the loss was officially established.

In the meantime, the opportunity had been taken to redesign the Spitfire's fuselage, to improve the pilot's view over the nose and to eliminate a slight directional instability by using a larger fin and rudder. This instability had been apparent since the introduction of the more powerful Griffon engine. The instability was exacerbated by the increase in propeller blade area due to the introduction of the four-bladed and subsequent five-bladed Rotol airscrews for the next aircraft, "NN664" (for which Specification F.1/43 had been issued). The updated design incorporated the new fuselage (although lacking the enlarged fin/rudder) and, as it was now substantially different from a Spitfire, the aircraft was named "Spiteful" (although "Victor" had been originally proposed).

Operational history

The Spiteful was ordered into production as the Spiteful XIV (having no preceding marks of its own, the numerals were carried over from the original Spitfire XIV conversion), and 150 of the aircraft were ordered. With the advent of jet propulsion, however, the future of high-performance fighters was clearly with the jet fighter, and so the order was later cancelled with only a handful of Spitefuls built. At the time however, there was some uncertainty over whether jet aircraft would be able to operate from the Royal Navy's aircraft carriers so it was decided to develop a naval version of the Spiteful, to specification N.5/45, subsequently named Seafang.

The Seafang featured folding wingtips, a "sting"-type arrester hook and a Griffon 89 or 90 engine, fed from an extended carburettor air intake driving a new Rotol six-bladed contra-rotating propeller. The first one produced was a converted Spiteful XV (RB520) but with the successful operation of the de Havilland Sea Vampire from the carrier HMS Ocean in 1945, the need for the Seafang disappeared.

With the end of the Second World War, Supermarine entered into discussions with Société Nationale de Constructions Aéronautiques du Nord (SNCAN) about licence production of the Spiteful in France, but again the introduction of jet fighters overshadowed the piston-engined fighter and the talks came to nothing.

Variants

Spiteful F Mk 14 - 19 built (two prototypes and 17 production)

Engine: Griffon 85 - 2,375 hp (1,771 kW) Weight: 9,950 lb (4,513 kg) Max Speed: 476 mph (766 km/h)

Spiteful F Mk 15 - one built - converted to Seafang prototype

Engine: Griffon 89 - 2,350 hp (1,752 kW) Weight: 10,200 lb (4,627 kg) Max Speed: 483 mph (777 km/h)

Spiteful F Mk 16 - two built - simple, three-speed Griffon conversions from F Mk 14s

Engine: Griffon 101 - 2,420 hp (1,805 kW) Weight: 9,950 lb (4,513 kg) Max Speed: 494 mph (795 km/h)

Seafang F.Mk 31 - eight built

Engine: Griffon 61

Seafang F.Mk 32 - 10 built

Engine: Griffon 89 - 2,350 hp (1,752 kW)

Jet Spiteful

In late 1943 or early 1944, Supermarine's chief designer Joe Smith suggested Supermarine develop a simple jet fighter based around the Spiteful's wing, and use a new jet engine being proposed by Rolls-Royce (later the Nene). This proposal was accepted and a new specification, E.10/44, was issued by the Air Ministry for an experimental aircraft which was initially referred to as the Jet Spiteful; the prototype TS409 first flew on 27 July 1946. The E.10/44 was not ordered by the RAF, as its performance was not substantially better than the Gloster Meteor and de Havilland Vampire, but the Admiralty expressed an interest in the aircraft for use as a naval fighter and issued specification E.1/45 around it. The aircraft was subsequently named Attacker and had a successful (if short) career with the Fleet Air Arm and the Pakistan Air Force.

Spiteful tail

The enlarged fin/rudder of the Spiteful was also used on the Spitfire Mark 22 and 24s and Seafire Mark 46 and 47s and was usually referred to as the "Spiteful type" tail.

Operators

United Kingdom

Royal Air Force

Specifications (Spiteful XIV)

Picture - Orthographic projection of the Spiteful Mk.XIV. The Spiteful possesses the elliptical horizontal stabiliser of the Spitfire, but lacks the elliptical wing.

Data from Supermarine Aircraft since 1914

General characteristics

Crew: One
Length: 32 ft 11 in (10.03 m)
Wingspan: 35 ft 0 in (10.67 m)
Height: 13 ft 5 in (4.09 m)
Wing area: 210 ft² (19.5 m²)
Empty weight: 7,350 lb (3,331 kg)
Max takeoff weight: 9,950 lb (4,523 kg)
Powerplant: 1x— Rolls-Royce Griffon 69 V-12 engine, 2,375 hp (1,772 kW)

Performance

Maximum speed: 483 mph (420 knots, 778 km/h) at 21,000 ft (6,400 m)
Range: 564 mi (490 nmi, 908 km)
Service ceiling: 42,000 ft (12,800 m)
Rate of climb: 4,890 ft/min (24.8 m/s)

Armament

Guns: 4 x— 20 mm (.79 in) Hispano Mk V cannons
Rockets: 8-12 x— 3inch "60 lb" rocket projectiles
Bombs: 2 x— 1,000 lb (450 kg) bombs

Related development

Supermarine Spitfire
Supermarine Seafang
Supermarine Attacker

Comparable aircraft

CAC CA-15
Hawker Sea Fury
Martin-Baker MB 5
Messerschmitt Me 309
P-51 Mustang
