Tupolev ANT-25

ANT-25

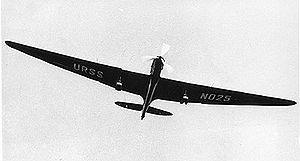

Picture - RD N025 in flight

Role: Long-distance experimental aircraft/bomber prototype
Manufacturer: Tupolev
Designed by: Andrei Tupolev
First flight: 22 June 1933
Introduced: 1933
Primary user: Soviet Air Force
Produced: 1933-1934, 1989
Number built: 1 (1933) + 1 (1934) + 1 (1989)
Variants: Tupolev DB-1

The Tupolev ANT-25 was a Soviet long-range experimental aircraft which was also tried as a bomber. First constructed in 1933, it was used by the Soviet Union for a number of record-breaking flights.

History and records

The ANT-25 was designed as the result of a recommendation by Kliment Voroshilov to the Revolutionary Military Council Revvoyensovyet on 7 December 1931, to build an aircraft for long range flights.

The aircraft was designed by the brigade of the Experimental Aircraft Design Department of TsAGI lead by Pavel Sukhoi under the overall supervision of Andrei Tupolev. The first prototype, designated Experimental airplane RD-1, (also designated TsAGI-25, ANT-25), RD standing for Rekord Dalnosty, i.e. "Range Record") made its maiden flight on 22 June 1933, piloted by Mikhail Gromov and used a direct drive M-34 engine.

The first crew, Gromov, Filin and Spirin, began with a long range test flight in September 1934 on the second prototype, the RD-2. The RD-2 used a geared M-34R engine, which substantially increased its range. They spent 75 hours in the air, covering 12,411 kilometres (7,712 mi) in a single trip, (Moscow - Ryazan - Tula - Dnepropetrovsk - Kharkov). The aircraft was unable to return to Moscow due to a fuel shortage. Gromov was made a Hero of the Soviet Union. The flight was not recognised as a world record as it could not complete the circuit to Moscow, so could not claim the closed circuit record, while the direct distance between Moscow and Kharkov was too short for the distance in a straight line record.

Gromov and Yumashev decided to make their next long-range flight an attempt at the straight-line record. They wanted to fly the traditional long-range route via Africa and the Atlantic Ocean to South America. A crewman, Sigizmund Levanevskiy, on studying some maps, suggested they fly in a completely different direction - to the north. Polar aviators were extremely popular at that time, his plan was considered plausible. The flight was cancelled in the spring of 1935 when he fell seriously ill.

The next long range flight planned, was from Moscow to the USA via the North Pole. A sloping concrete runway 4 kilometres (2.5 mi) in length, was built at Schelkovo air-base near Moscow. In the early morning of 3 August 1935, Levanevskiy, Baidukov and Levchenko climbed aboard their RD and took to the air. For the first 50 kilometres (31 mi), the aircraft ascended to only 500 metres (1,600 ft). They then steadily increased their altitude to 5,000 metres (16,000 ft), maintaining an average speed of 165 kilometres per hour (103 mph). After approximately 2,000 kilometres (1,200 mi), an oil leak was discovered but the aircraft was able to make an emergency landing at Krechevits near Novgorod. Levanevskiy was called to a Politburo meeting, where he blamed Tupolev, declaring that his single-engined ANT-25 was under-powered. It seemed to be the end for the aircraft.

His second pilot Georgy Baidukov, who was also an aviation engineer, disagreed and proposed Valery Chkalov for a second attempt. Chkalov was at first sceptical about his selection, as he was a fighter pilot with little navigational knowledge. Baidukov briefed Chkalov on the finer points of flying the ANT-25 and proposed Aleksander Belyakov, who was the chief instructor of their flight academy, as their third crewman. Chkalov's authority was enough to convince Stalin.

In July 1936, the record was broken by Chkalov, Baidukov and Belyakov flying the same aircraft from Moscow to the Far East (Stalin's Route) in 56 hours 20 minutes; a distance of 9,374 kilometres (5,825 mi). They passed Franz Josef Land - Severnaya Zemlya - Tiksi - Yakutia - Petropavlovsk-Kamchatsky - Khabarovsk - Okhotsk Sea and landed on a beach at Udd island (now called Chkalov island), near the Amur River.

The next day, Pravda newspaper published a leading article "Glory to Stalin's Sokols!" (�Слава сталинским соколам!�). A wooden runway was constructed on Udd island and on 2 August, the ANT-25 departed for Moscow. The trip back lasted a week with stops at Khabarovsk, Chita, Krasnoyarsk and Omsk with a grand welcome at each. Chkalov's trio became Heroes of the Soviet Union. Two islands nearby were renamed after Baidukov and Belyakov.

Chkalov's achievement became world-famous, however, the Politburo still wanted the publicity of a direct flight. Gromov was ordered to fly to Brazil on 14 August 1936 in a second ANT-25, but as he prepared for the start on 25 September, Brazilian officials denied access to the Soviet plane and the flight was cancelled.

Both Chkalov's and Gromov's crews were now destined to fly north from Moscow to San Francisco. Over 18-20 June 1937 - the same crew of Valery Chkalov, co-pilot Georgiy Baidukov and navigator A. Belyakov made a non-stop flight from Moscow to Portland, United States, in bad weather. At the 60 hour point they passed Seattle, after two more hours they passed Portland lighthouse on the Columbia River and headed deeper into US territory. Over the city of Eugene they found they were short of fuel and turned back for the military airbase at Vancouver, landing at Pearson Airfield. (by the other sources - Barak Airfield). The 9,130 kilometres (5,670 mi) trip took 63 hours and 25 minutes. In 1975, an obelisk was erected on the airfield to commemorate this event.

Another widely publicized feat was the Moscow - San Jacinto non-stop flight in a backup aircraft just three weeks after Chkalov's. This jourmey, via the North Pole, covered 11,500 kilometres (7,100 mi). The crew, still composed of Gromov, Yumashev, and Danilin, flew for 62 hours and 17 minutes between 12 and 14 July 1937. After landing, the aircraft still had sufficient fuel for approximately 1,500 kilometres (930 mi), enough to reach Panama. This would have involved crossing the Mexican border without the permission of FAI sporting officials.

Gromov became an unofficial Soviet Pilot No. 1, Chkalov remained the favourite pilot of the Soviet people. Joy at the achievements were tempered by Levanevskiy crashing on the same route in a brand-new 4-engined DB-A.

The record set by the Soviets was broken by two British Vickers Wellesley bombers which flew from Egypt to Australia in November 1938; a distance of 11,523.9 kilometres (7,160.6 mi). The USSR did not continue the race, aviation design bureau works stalled due to repression. Tupolev was jailed, Gromov was also on the brink of arrest. Chkalov mysteriously crashed while testing a new fighter on 15 December, 1938.

After Chkalov's death, Usachoyv, the Chief of the Aviation Industry Directorate Belyaikin and the director of the plant where Chkalov's machine had been built, and Tomashevich, the designer, all came under suspicion due to sabotage. Nikolai Polikarpov escaped arrest.

Technology

The main reason for the aircraft's success was due to the wing design. The wide-span wings gave the aircraft good range and fuel-efficiency, they could also house large fuel tanks. The proportion of the wingspan to the chord was more than a factor of 13. Fuel was 52% of the take-off weight, the tanks had been moved from the fuselage - this allowed the wings to tension as fuel weight opposed the aerodynamics forces.

Research was conducted into special forms of vibration of the aircraft because of the longer wings and at a speed greater than some critical point - the so-called flutter effect.

To stay afloat after ditching, the ANT-25 used air-filled bags made of rubberised fabric.

According to the archives, the idea of a military variant of the RD first came to the engineer Zhemchuzhin of the 7th sector of the Soviet Air Force Scientific Research Institute. Its slow speed, low altitude, poor maneuverability and large wingspan made it a perfect target for fighters and anti-aircraft guns.

Only two aircraft were manufactured, which were followed by the Tupolev DB-1. In 1934 the aviation plant in Voronezh received an order to construct 50 ANT-36s for the Air Force. The Tupolev design bureau built an exact copy of an ANT-25 in 1989 for Monino aviation museum.

Variant

DB-1 Unsuccessful bomber. Few built. Max speed 210 kilometres per hour (130 mph).

Operators

Soviet Union

Soviet Air Force

Specifications (ANT-25)

General characteristics

Crew: 3
Length: 13.9m (45 ft 7 in)
Wingspan: 34m (111 ft 7 in)
Height: 5.5m (18 ft 1 in)
Wing area: 87.9 m� (946.15 ft�)
Empty weight: 4,200 kg (9,259 lb)
Max takeoff weight: 11,500 kg (25,353 lb)
Powerplant: 1x� Mikulin AM-34, 560 kW (750 hp (later forced to 874 hp)) at 1,760 rpm for cruise

Performance

Maximum speed: 210 km/h (130 mph)
Range: 13,000 km (8,078 mi)
Service ceiling: 7,000 m (22,966 ft)

Comparable aircraft Bl�riot 110
