Vickers Type 161

Type 161

Role: Interceptor fighter
National origin: United Kingdom
Manufacturer: Vickers Ltd.
First flight: 21 January 1931
Number built: 1
Developed from: Vickers Jockey

The Vickers Type 161 was an unusual 1930s pusher biplane interceptor, designed to attack aircraft from below with a single upward-angle large calibre gun. The aircraft flew well but the concept was abandoned; only one was built.

Development

The Vickers 161 was designed in response to Air Ministry specification F.29/27. This called for an interceptor fighter operating as a stable gun platform for the COW 37 mm gun produced by the Coventry Ordnance Works (COW) that that fired 23 oz (0.65 kg) shells. The gun was to be mounted at 45 deg or more above the horizontal, and the tactic was to fly below the target bomber or airship, firing upwards into it. During World War II the Luftwaffe successfully used a rather similar approach, named Schrx¤ge Musik. The specification also called for a top speed well in excess of a typical bomber's cruising speed and a good rate of climb.

Vickers' approach seems to have been influenced by their World War I experience with the Gunbus family. Like them, the Type 161 was a single engined pusher biplane. The wings were of unequal span and parallel chord, mounted with heavy stagger and a large gap braced in two bay fashion by streamlined I form, outward leaning interplane struts. Parallel booms, formed on each side by a pair of tubular members converging from the top and bottom of the inner interplane struts onto the tail. Another pair of tubes joined the bottom of the interplane struts to the upper boom at mid-point. The tailplane had a wide span, extending past the booms; the fin and rudder were conventional and stiffened with lighter bracing to mid-boom. Flying surfaces were fabric covered.

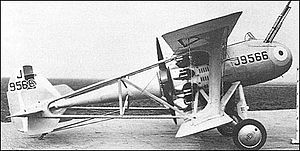

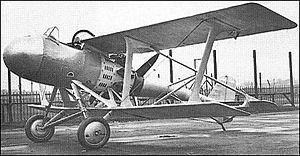

Picture -

Pilot and gun were housed in a metal monocoque nacelle mounted to the underside of the upper wing, leaving a gap below. The pilot's cockpit was off-set to port with the gun to his right, its breech accessible. The Bristol Jupiter VIIF was installed with its cylinders in line with the rear edge of the upper wing, supported by two pairs of struts to the lower wing spars and driving a four blade propeller. This had an unusual ring fairing that rotated with it and matched the engine cowling in diameter. Aft, and without a break, a fuselage-like fairing ran rearwards, narrowing to the tail. This structure was stabilized on each side by a pair of struts to the upper and lower booms. A split axle undercarriage had legs to the fuselage and, rearwards, to the forward wung spar, with a strut between their upper joints.

The Type 161 flew for the first time on 21 January 1931. Further flight trials produced some modifications, largely to improve yaw stability. The rudder was broadened and rounded at the top, and small fins were added above and below the tailplane at the boom mounting point. There were also alterations to the geometry and gearing of the elevator trim tabs: it has been suggested that the Type 161 may have been the first aircraft to have had in-flight adjustable elevator trims. In September 1931 it went to RAF Martlesham Heath for trials, where no serious problems emerged and pilot's reports were positive. The gun firing tests went well, with no detriment to airframe or performance. Despite that, neither the Type 161 or its competitor the Westland C.O.W. Gun Fighter were ordered and no more was heard of the aerial COW gun.

Specifications

Data from Andrews 1988 p.254

General characteristics

Crew: 1
Length: 23 ft 6 in (7.16 m)
Wingspan: 32 ft 0 in (9.75 m)
Height: 12 ft 4 in (3.76 m)
Wing area: 270 ft² (25.1 m²)
Empty weight: 2,318 lb (1,051 kg)
Gross weight: 3,350 lb (1,520 kg)
Powerplant: 1 x— Bristol Jupiter VIIF 9-cylinder radial, 530 hp (395 kW)

Performance

Maximum speed: (at 10,000 ft, 3,048 m) 185 mph (298 km/h)
Rate of climb: (to 10,000 ft, 3,048 m) ft/min (8.76 m/s)

Armament

1x— 37 mm (1.46 in) COW automatic gun

Comparable aircraft

Westland C.O.W. Gun Fighter
