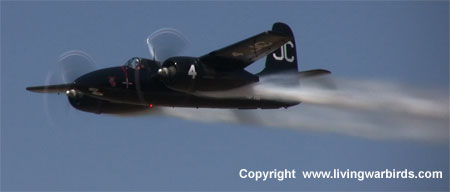

Grumman F7F-3P Tigercat - N909TC

Airplane Pictures - Living Warbirds: Grumman F7F-3P Tigercat Manufacturer: Grumman
Model: F7F-3
Year built: 1945
Serial Number: 80425
Number of Seats: 2
Number of Engines: 2
Engine Type: Reciprocating
Engine: P & W R-2800 Series

Grumman F7F Tigercat Aircraft Information

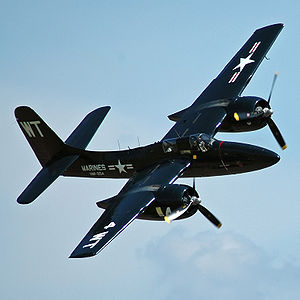

Airplane Pictures - United States Marine Corps F7F-3P in flight

(Image: United States Marine Corps F7F-3P in flight)

The Grumman F7F Tigercat was the first twin-engined fighter aircraft design to enter service with the United States Navy. Designed for the new Midway-class aircraft carriers, the aircraft were too large to operate from earlier decks. Although delivered to United States Marine Corps (USMC) combat units before the end of World War II, the Tigercat did not see combat service in that war. Most F7Fs ended up in land-based service, as attack aircraft or night fighters; only the later F7F-4N was certified for carrier service. They saw service in the Korean War and were withdrawn from service in 1954.

Design and development

The contract for the prototype XF7F-1 was signed on 30 June 1941. Grumman's aim was to produce a plane that out-performed and out-gunned all existing fighter aircraft, and that had an auxiliary ground attack capability. Armament was heavy: four 20 mm cannons and four 0.50 in (12.7 mm) machine guns, as well as underwing and under-fuselage hardpoints for bombs and torpedoes. Performance met expectations too; the F7F Tigercat was one of the highest-performance piston-engined fighters, with a top speed well in excess of the US Navy's single-engined aircraft—71 mph faster than a F6F Hellcat at sea level. The opinion of Capt. Fred M. Trapnell, one of the Navy's premier test pilots, was that "It's the best damn fighter I've ever flown." The Grumman F7F was originally named the "Tomcat" but this name was rejected as it was considered at the time too suggestive. The name would much later be used for the Grumman F-14.

All this was bought at the cost of heavy weight and a high landing speed, but what caused the aircraft to fail carrier suitability trials was poor directional stability with only one engine operational, as well as problems with the tail-hook design. Therefore, the initial production series was only used from land bases by the USMC, as night fighters with APS-6 radar. At first, they were single-seater F7F-1N aircraft, but after the 34th production aircraft, a second seat for a radar operator was added; these planes were designated F7F-2N.

The next version produced, the F7F-3 was modified to correct the issues that caused the aircraft to fail carrier acceptance and this version was again trialled on the USS Shangri-La (CV-38). A wing failure on a heavy landing caused the failure of this carrier qualification too. F7F-3 aircraft were produced in day fighter, night fighter and photo-reconnaissance versions.

A final version, the F7F-4N, was extensively rebuilt for additional strength and stability, and did pass carrier qualification, but only 12 were built.

Survivors

Airplane Pictures - The Tigercat was designed to have a very small frontal area

(Image: The Tigercat was designed to have a very small frontal area)

A number of Tigercats were used as water bombers to fight forest fires in the 1960s and 1970s, and for this reason 12 examples exist today. Six of these are still airworthy.

As warbird racers, in 1976, Robert Forbes qualified an F7F-3N but did not race at Reno. Another modified F7F-3N Tigercat, (Bu No. 80503) "Big Bossman" owned by Mike Brown presently competes in the national air racing circuit.

At least three F7F Tigercats are preserved in aviation museums:

F7F3 (Serial no. 80373/N7654C) National Museum of Naval Aviation, NAS Pensacola, Florida
F7F3 (Serial no. 80410) Pima Air & Space Museum, Tucson, Arizona
F7F-3P (Serial no. 80390/N700F) Kalamazoo Aviation History Museum, Kalamazoo, Michigan

Specifications (F7F-4N Tigercat)

General characteristics

Airplane Pictures - F7F-tigercat

Crew: 2 (pilot, radar operator)
Length: 45 ft 4 in (13.8 m)
Wingspan: 51 ft 6 in (15.7 m)
Height: 16 ft 7 in (5.1 m)
Wing area: 455 ft² (42.3 m²)
Empty weight: 16,270 lb (7,380 kg)
Max takeoff weight: 25,720 lb (11,670 kg)
Powerplant: 2× Pratt & Whitney R-2800-34W "Double Wasp" radial engines, 2,100 hp (1,600 kW) each

Performance

Maximum speed: 400 knots (460 mph, 740 km/h)
Range: 1,200 mi (1,000 nm, 1,900 km)
Service ceiling 40,400 ft (12,300 m)

Armament

Guns:
4× 20 mm (0.787 in) M2 cannon
4× 0.50 in (12.7 mm) M2 Browning machine gun

Bombs:
2× 1,000 lb (450 kg) bombs under wings or
1× torpedo under fuselage

Avionics

AN/APS-19 radar

Source: WikiPedia
